Fireproof Glass Wall Systems: Ensuring Compartmentation Without Sacrificing Light
Rethinking Boundaries: Transparent Compartmentation in Modern Design
Traditional building safety often relies on opaque, solid walls to create fire compartments, barriers designed to contain flames and smoke to their area of origin. While effective for safety, these walls can segment a building into dark, confined spaces, contradicting modern architectural values of openness, collaboration, and natural light. Pyronano's Fireproof Glass Wall Systems revolutionize this paradigm. They are engineered to provide certified fire resistance, meeting rigorous EI (Integrity and Insulation) classifications for 30, 60, 90, or even 120 minutes, while remaining visually transparent. This creates what is known as transparent compartmentation. By replacing opaque barriers with high-performance glass walls, these systems allow for the uninterrupted flow of light and sightlines, fostering a sense of spaciousness and connectivity. Whether demarcating an escape corridor, enclosing a stairwell, or separating a lobby from an atrium, the system fulfills strict building code requirements for compartmentation without the spatial and psychological weight of a solid wall. It is the foundational principle of achieving safety through visibility, ensuring that critical passive fire protection integrates seamlessly into the architectural intent rather than disrupting it.
The Engineered Core: How Glass Walls Achieve Certified Fire Resistance
The ability of a transparent glass wall to act as a formidable fire barrier lies in its advanced, multi-layered construction. Pyronano’s systems are not merely thick glass; they are sophisticated fire-resisting glazed assemblies. At their core are specialized laminates of glass bonded with transparent intumescent interlayers. In normal conditions, this assembly is perfectly clear. However, when exposed to the intense heat of a fire, the interlayer undergoes a controlled chemical reaction, expanding to form a thick, opaque, insulating char. This foam-like char provides the critical Insulation (I) rating, blocking the transfer of radiant heat to the protected side, which is essential to prevent ignition of materials and protect escape routes. Simultaneously, the tempered glass plies and the stability of the overall unit maintain Integrity (E), preventing the passage of flames, smoke, and hot gases. This entire assembly is then integrated into a certified system of fire-rated frames (steel or aluminum), seals, and hardware. Each component, from the glass to the perimeter seals that expand in heat, is tested and rated as a complete unit. This systems approach ensures that the glass wall system performs predictably under fire conditions, maintaining compartmentation and enabling safe egress, all while preserving the designer’s vision for a luminous environment.
Design Versatility and Applications: From Minimalist Screens to Grand Partitions

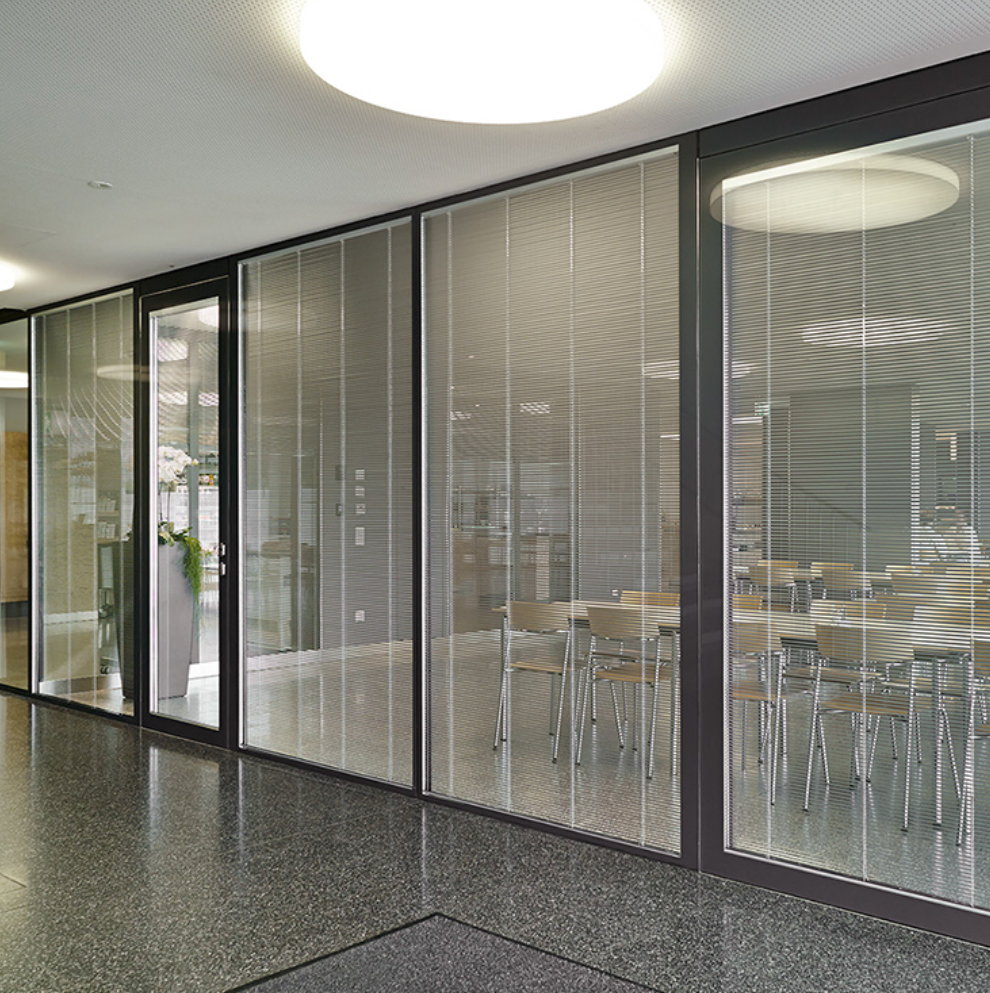

The true power of Pyronano’s fireproof glass wall systems lies in their design versatility, which allows them to be tailored to diverse architectural aesthetics and functional requirements. They can be configured as frameless glass walls using minimal patch fittings or butt-jointed systems for a seamless, floating appearance that maximizes transparency. Alternatively, they can be installed within slender yet robust fire-rated framing systems, available in various finishes to complement the interior design. This flexibility enables a wide range of applications. In office buildings, they create secure yet transparent office partitions and corridor linings, promoting an open-plan culture without compromising fire safety codes. In hotels and shopping malls, they serve as elegant enclosures for atriums, escalators, and restaurant fronts. In laboratories or industrial settings, they provide protected viewing areas and safe separation zones. The systems can also incorporate fire-rated glass doors for integrated access points. By offering this adaptability, Pyronano empowers architects and designers to use light and transparency as primary design elements, while the glass wall system works silently in the background as a reliable, code-compliant safeguard, ensuring that safety is beautifully and unobtrusively woven into the fabric of the space.
In essence, Pyronano's Fireproof Glass Wall Systems resolve the age-old conflict between safety mandates and design aspiration. They deliver certified, passive fire compartmentation through high-performance, transparent barriers that maintain the flow of light and visual connection. This allows architects to design bold, open, and luminous spaces with the confidence that life safety is ensured, proving that true innovation lies not in choosing between light and security, but in seamlessly integrating both.
