How Contractors Can Reduce Rework In Fire Rated Glass Installation
How Contractors Can Reduce Rework In Fire Rated Glass Installation
Rework in fire rated glass installation can cause project delays, extra labor costs, damaged panels and failed inspections. Contractors can reduce these risks by confirming drawings, site dimensions, frame compatibility, hardware, packing and installation sequence before production and delivery.
Get QuoteWhy Rework Happens In Fire Rated Glass Projects
Fire rated glass is different from ordinary decorative glass. It must match the required fire rating, frame system, opening size, wall structure and installation method. If one detail is wrong, contractors may need to remove, reorder or reinstall the glass system.
Common rework problems include incorrect panel size, unsuitable frame depth, missing fireproof seals, wrong door opening direction, hardware mismatch and poor site preparation.
1. Confirm Drawings Before Production
Contractors should confirm floor plans, elevation drawings, section details and glass layout before production starts. The supplier should review whether the selected glass size, fire rating and frame system match the project drawings.
Floor plan and installation location
Elevation drawing and panel layout
Section drawing and wall connection
Door opening direction and hardware position
Frame type and fixing details
2. Recheck Actual Site Measurements
Many rework issues happen because actual site dimensions are different from drawings. Before placing an order, contractors should measure the final opening width, height, wall thickness, floor level and ceiling condition.
For renovation projects, this step is especially important because existing walls may not be perfectly straight or level.
3. Check Frame, Seal And Glass Compatibility

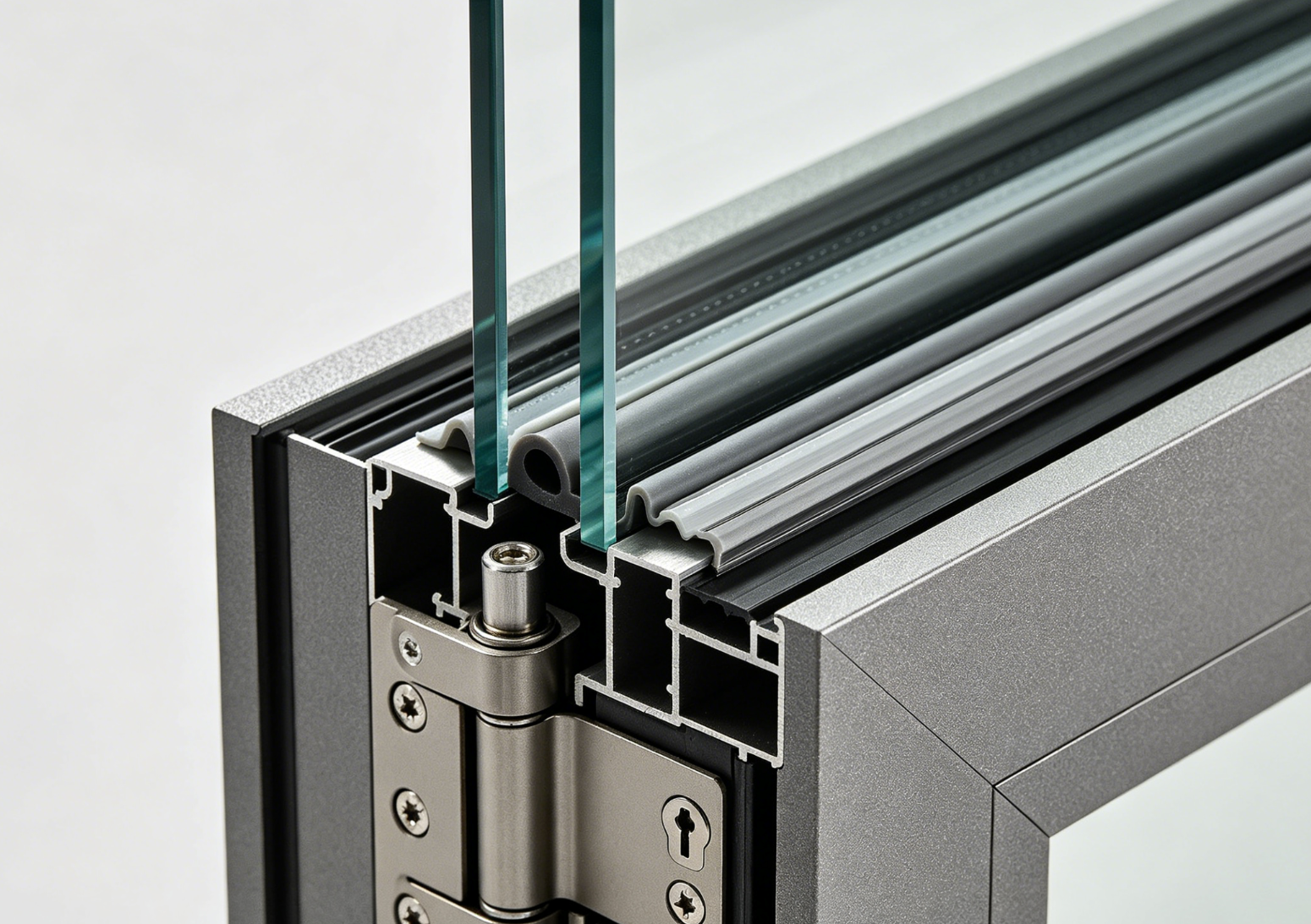

Fire rated glass installation depends on the complete system. The glass, frame, fireproof sealant, gasket, glazing bead and fixing method must match the required fire rating.
Contractors should avoid ordering glass panels separately without confirming whether the frame system can support the glass thickness, panel weight and fire rating.
4. Confirm Hardware Before Delivery
If the project includes fire rated glass doors, all hardware should be confirmed before delivery. Missing or mismatched hardware can delay installation and cause repeated site adjustments.
Door closer and hinge type
Lock, handle and panic bar requirement
Access control or electronic lock position
Door swing direction and clearance
Hardware finish and installation position
5. Plan Installation Sequence And Handling
Fire rated glass panels can be heavy and difficult to move on site. Contractors should plan unloading, lifting, storage and installation sequence before delivery. This reduces the risk of panel damage, wrong placement and repeated handling.
For oversized panels or high-rise projects, lifting access, elevator size, crane availability and installation path should be checked early.
6. Label Panels And Match Them To Installation Areas
For projects with multiple panels, each glass crate and panel should be clearly labeled according to location, size and installation area. This helps contractors find the correct panel faster and reduces confusion on site.
Installation Rework Prevention Checklist
Have final drawings been confirmed?
Have actual site dimensions been measured?
Does the frame match the glass thickness and fire rating?
Are fireproof seals, gaskets and glazing beads included?
Is door hardware confirmed before delivery?
Is installation access suitable for large glass panels?
Are panels and crates clearly labeled?
Is there a clear installation sequence for the contractor team?
Conclusion
Contractors can reduce rework in fire rated glass installation by confirming drawings, site measurements, frame compatibility, hardware, labels and installation sequence before production and delivery. A careful pre-installation review helps reduce delays, replacement costs and inspection risks.
