Why Fire Rated Glass Doors Need Matching Hardware And Seals
Why Fire Rated Glass Doors Need Matching Hardware And Seals
Fire rated glass doors are complete safety systems. The glass panel, frame, hinges, closer, lock, panic bar, fireproof seals and gaskets must work together to maintain fire protection, smoke control and reliable daily operation.
Get QuoteWhy Hardware And Seals Matter
Many buyers focus only on fire rated glass thickness or EI rating, but the door system may fail if the hardware and seals are not matched correctly. A fire rated glass door needs stable closing, correct frame support, high-temperature sealing and suitable hardware for the application area.
For staircases, hotel corridors, hospital emergency routes, office partitions and public buildings, unmatched hardware can lead to poor closing, smoke leakage, installation problems and inspection risk.
1. Door Closers Help Maintain Fire Separation
Fire rated doors should close properly after use. If the door closer is too weak, too strong or unsuitable for the glass door weight, the door may not close completely. This can reduce fire separation performance during an emergency.
Confirm glass door weight before selecting the closer.
Check traffic frequency in corridors or public areas.
Confirm whether delayed closing or hold-open function is needed.
Match closer strength with door size and application.

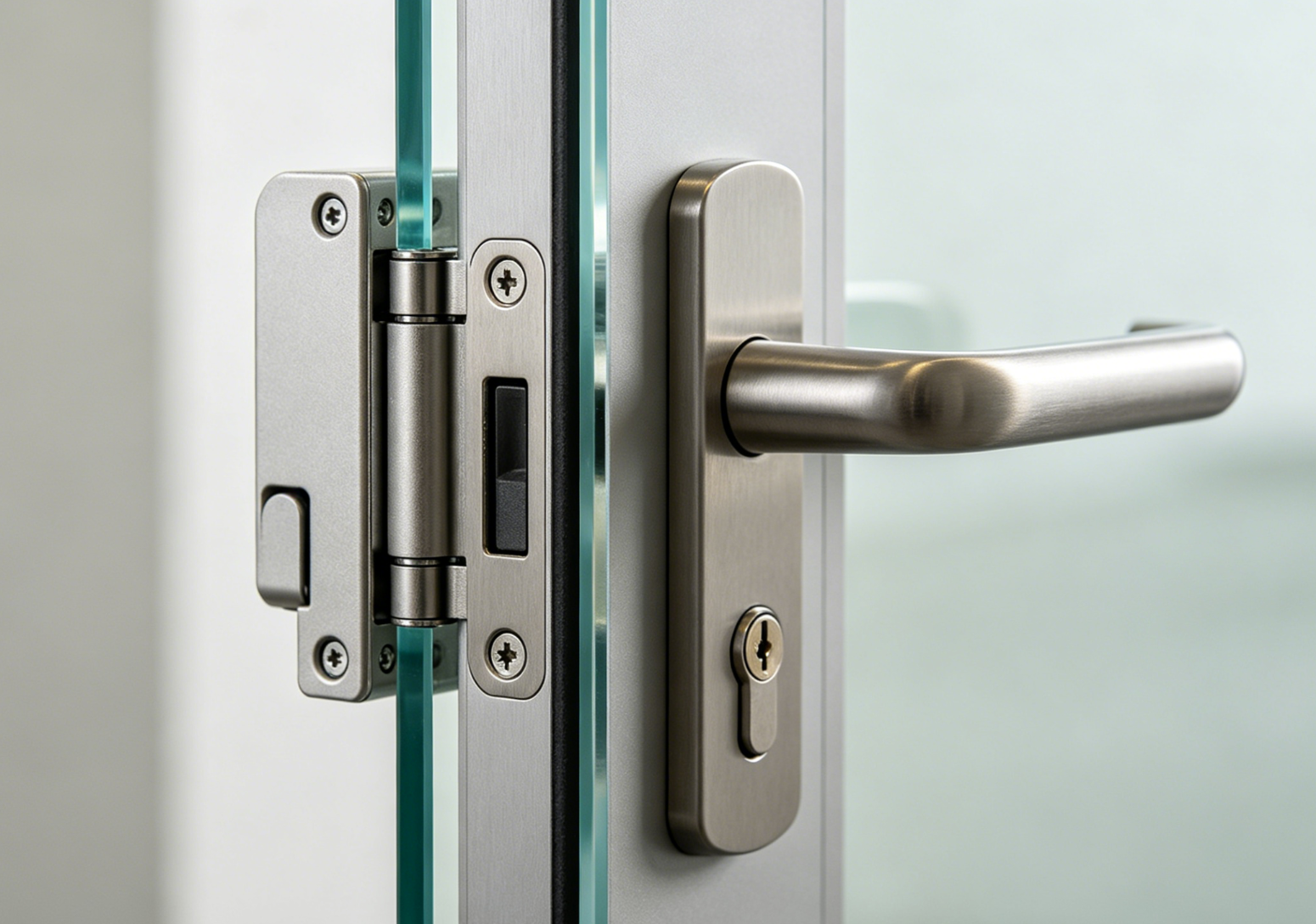

2. Hinges And Locks Must Support Daily Use
Fire rated glass doors are often used in high-traffic areas. Hinges, locks and handles must support repeated opening and closing without affecting alignment or sealing performance.
In hospitals, hotels, schools and commercial buildings, weak hardware can cause door sagging, uneven gaps and long-term maintenance issues.

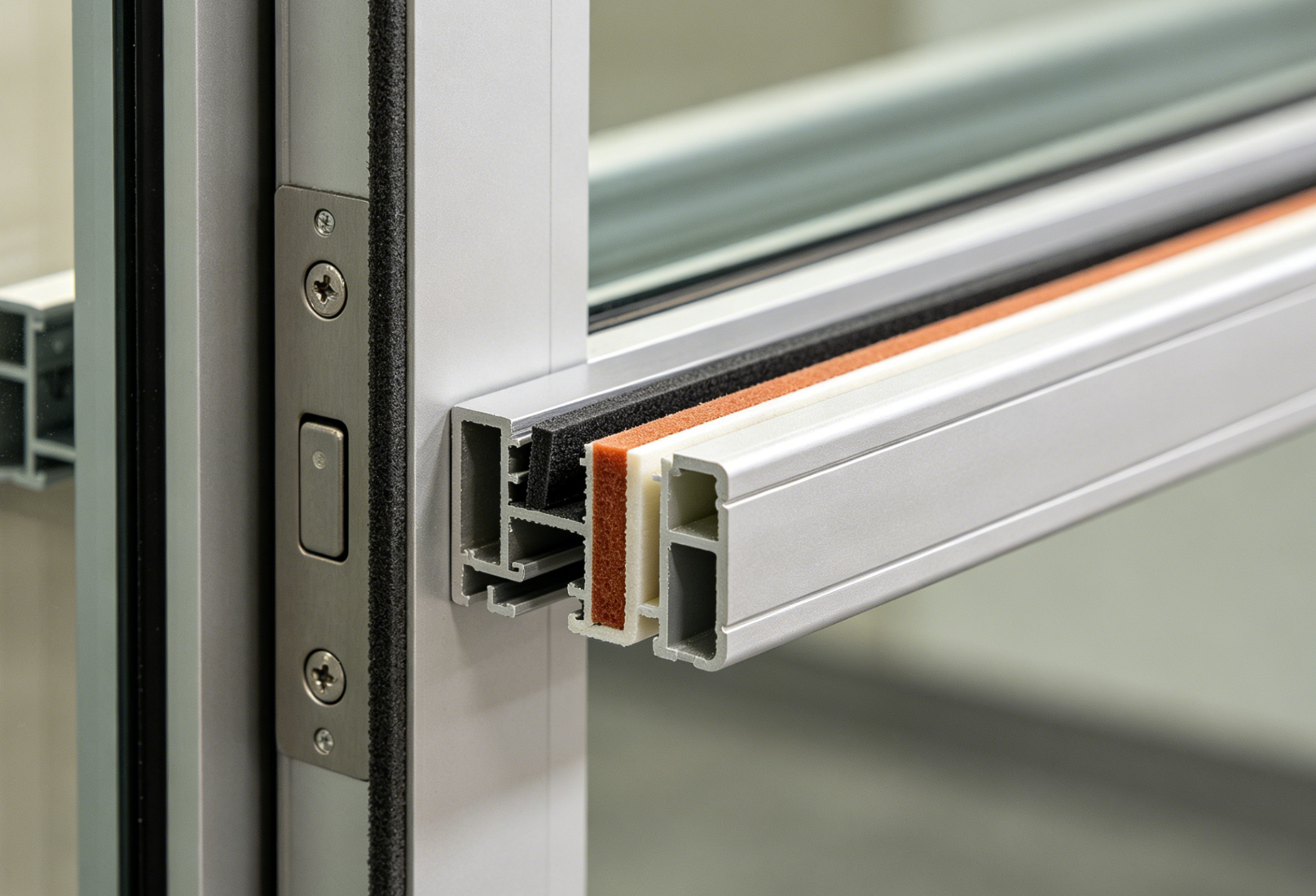

3. Fireproof Seals Reduce Smoke And Heat Transfer Risk
Fireproof seals, gaskets and intumescent materials help close gaps between the glass, frame and door leaf. Ordinary rubber or decorative sealing materials may not perform under high temperature.
Buyers should confirm whether the seal system is suitable for the required fire rating and whether it matches the frame profile, glazing bead and door structure.
4. Panic Bars And Access Control Need Early Confirmation
Escape routes, staircases and public building exits may require panic bars or emergency exit hardware. Office buildings, hospitals and data centers may also require access control.
These details should be confirmed before quotation because they affect door structure, frame preparation, hardware position, installation method and final cost.
5. What Buyers Should Confirm Before Ordering
Required fire rating: EI30, EI60, EI90 or EI120
Door size, glass thickness and door weight
Single door, double door or door with side panels
Opening direction and evacuation route requirement
Door closer, hinge, lock, handle and panic bar needs
Access control or electronic lock requirement
Frame profile, glazing bead, fireproof seal and gasket type
Application area: hotel, hospital, office, school, mall or public building
Conclusion
Fire rated glass doors need matching hardware and seals because the complete system determines real project performance. Buyers should not select glass, frame, hardware and seals separately without checking compatibility. Early confirmation can reduce installation problems, smoke leakage risk, hardware mismatch and project delays.
