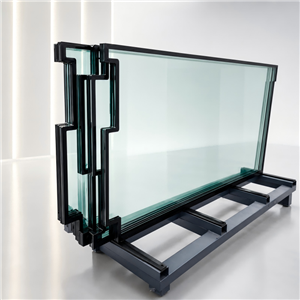

Custom Irregular Shape Fire Resistant Glass Panels for Architectural Glazing

Custom Irregular Shape Fire Resistant Glass for Architectural Glazing

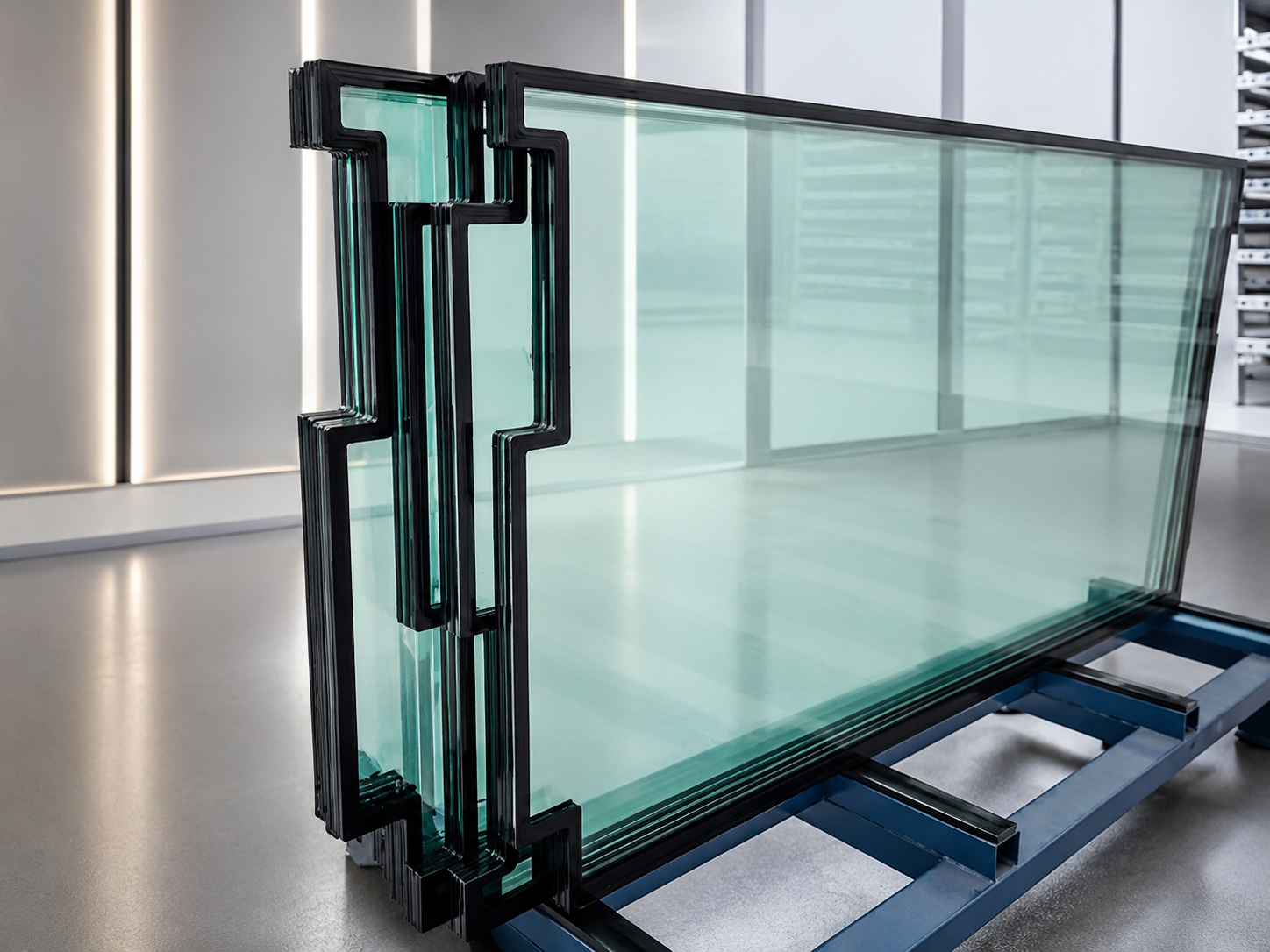

Custom Irregular Shape Fire Resistant Glass is developed for architectural projects that require non-standard glass forms while maintaining fire safety performance. Unlike conventional rectangular fire-rated glass, this product can be customized into special shapes, stepped edges, cut-out profiles and project-specific dimensions to match complex door systems, partition layouts, façade designs and fire-rated glazing structures.

The glass combines transparent visual appearance with fire protection performance, making it suitable for modern buildings that need both safety and design flexibility. It can be used in commercial spaces, public buildings, hotels, shopping malls, transportation facilities, schools, hospitals, office partitions and customized architectural glazing projects.

Key Features

• Custom irregular shapes: Supports special-shaped designs, edge profiles, notches and non-standard glazing requirements.

• Fire-rated protection: Designed for fire-resistant glazing systems requiring flame, smoke and heat control.

• Clear architectural appearance: Maintains transparency and natural light transmission while supporting fire safety design.

• Multi-layer glass structure: Available in laminated or composite structures according to project requirements.

• Suitable for system integration: Can be used with steel frames, fire-rated doors, glass partitions, curtain walls and customized façade systems.

• Project-based customization: Thickness, size, shape, edge processing and fire rating can be customized according to drawings and technical specifications.

•


Typical Applications

• Fire-rated glass doors and side panels

• Interior fire-resistant glass partitions

• Commercial building fire separation areas

• Shopping mall and hotel transparent fire barriers

• Office, school and hospital safety glazing systems

• Architectural façades and customized curtain wall glazing

• Special-shaped openings in steel-framed fireproof systems

Why Choose Irregular Shape Fire Resistant Glass?

Many architectural projects require glass panels that cannot be solved with standard sizes or simple rectangular shapes. Staircases, entrance systems, curved walls, decorative partitions and custom fire-rated openings often need special glass processing. PYRONANO irregular shape fire resistant glass provides a flexible solution for these projects, helping architects, contractors and door system manufacturers achieve both fire safety compliance and visual design consistency.

The product can be processed according to drawings, templates or project specifications. Edge treatment, glass thickness, interlayer structure and glazing size can be adjusted to fit different installation systems. This makes it a practical choice for customized fire-rated doors, steel framed systems, transparent partitions and high-end architectural glazing.

Customization Options

• Shape: rectangle, stepped shape, notched shape, polygonal shape and project-specific irregular shapes

• Glass structure: single-layer, laminated or multi-layer composite fire-resistant glass

• Thickness: customized according to required fire rating and system design

• Color: clear, light green tint or customized glass appearance

• Edge processing: polished edge, ground edge, special edge profile or sealed edge

• Application system: doors, partitions, façades, curtain walls and framed glazing systems




Fire Safety and Visual Performance

This fire-rated glass is designed to help limit the spread of fire, smoke and hot gases when installed as part of a tested fire-resistant glazing system. At the same time, its transparent appearance allows natural light to pass through the building space, reducing the heavy visual feeling of traditional opaque fire barriers.

For projects requiring EI30, EI60, EI90 or EI120 fire performance, the final glass configuration should be selected according to the required fire rating, frame system, installation method and local building code. Our technical team can provide product selection support based on project drawings and application conditions.

Quality Control and Packing

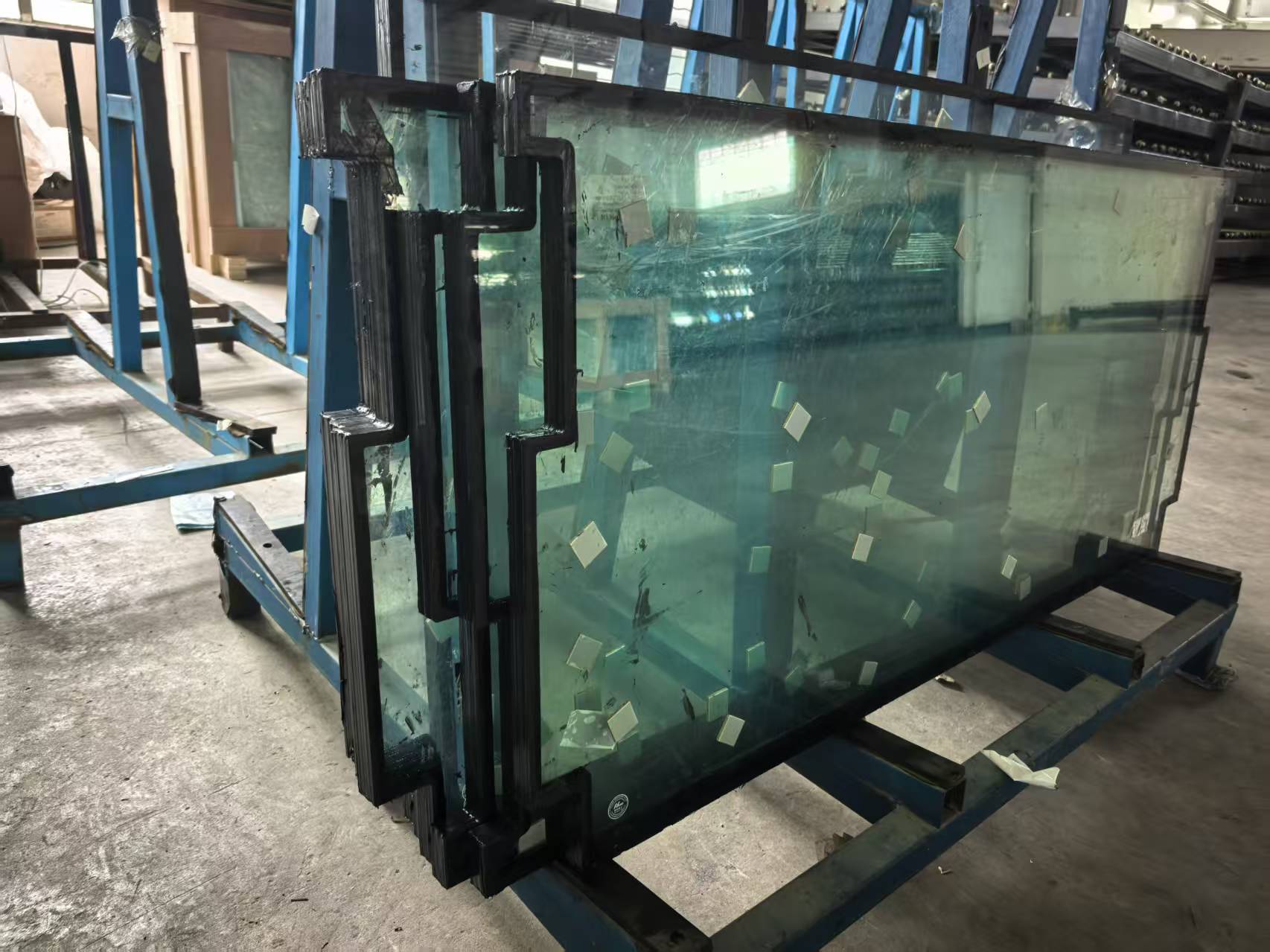

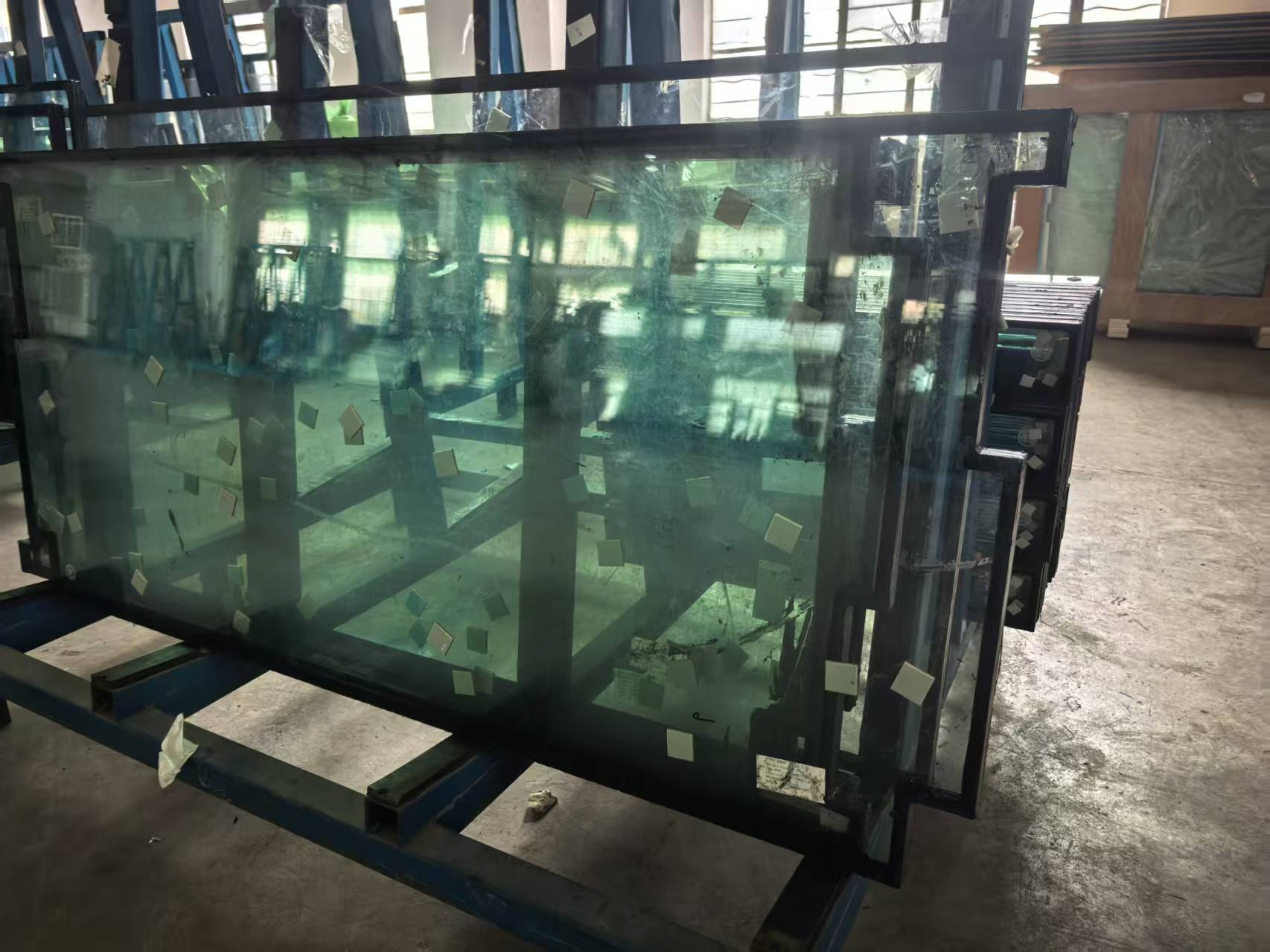

Each custom-shaped fire resistant glass panel is processed with attention to dimensional accuracy, edge quality, surface clarity and packing protection. For export projects, the glass can be packed in strong wooden crates with protective spacers to reduce the risk of damage during handling and transportation.

Request a Custom Quote

Send us your drawing, size, thickness requirement, fire rating requirement and application scenario. PYRONANO can provide a suitable irregular shape fire resistant glass solution for your architectural glazing project.
