Double-Leaf Fire Doors with Integrated Side Panels
Double-Leaf Fire Doors with Integrated Side Panels
The System Approach to Maximum Protection and Wider Openings

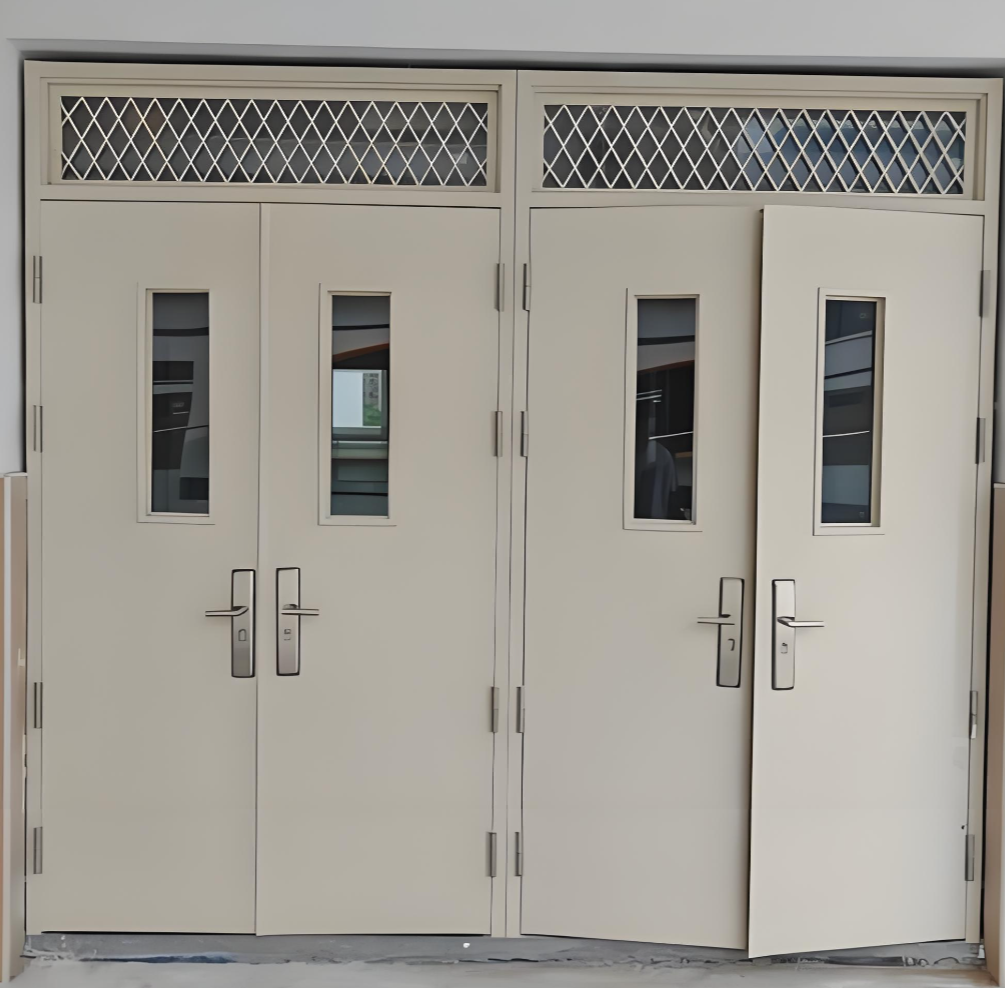

Double-leaf fire doors with integrated side panels represent a comprehensive fire safety system, designed to protect larger openings such as main corridors, hospital hallways, and entranceways to large function rooms. Unlike single-door units, this configuration consists of two active door leaves that meet at the center, complemented by fixed glass panels (side lights) on one or both sides. The primary advantage of this design is its ability to span wider widths while maintaining a balanced and aesthetically pleasing proportion, avoiding the need for a single, overly wide and heavy door leaf. From a safety perspective, this system creates an extensive, continuous barrier that is tested and certified as a complete assembly. The integration of the side panels with the door leaves is critical; all components must perform in unison during a fire to prevent breaches at the junctions. PyroNano's systems are engineered to ensure that the entire unit—both active leaves and fixed panels—achieves the same fire resistance rating (e.g., EI60 or EI120), providing a seamless and reliable shield against the spread of fire and smoke.
Precision Engineering for Synchronized Performance and Integrity

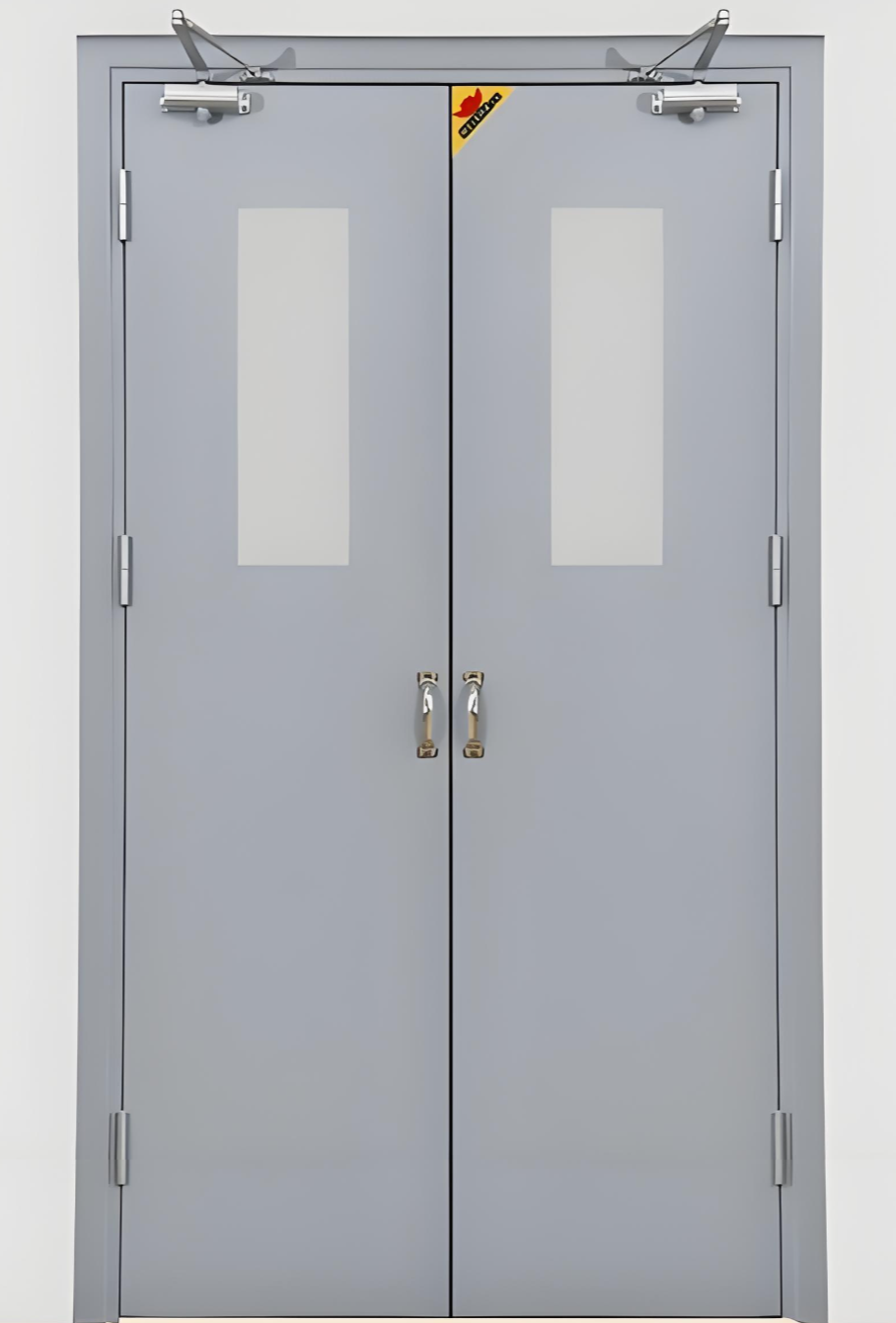

The effectiveness of a double-leaf door system hinges on the precision engineering of its components and their interaction. Each door leaf is hung on a pair of heavy-duty, certified fire door hinges and is equipped with a self-closing device, often a overhead door closer. The most critical component is the central meeting stile, where the two leaves come together. This area is fitted with a specially designed intumescent seal that expands under heat to seal the gap. Additionally, the doors incorporate perimeter intumescent and smoke seals within the frame. The integrated side panels are not merely fixed lights; they are structurally bonded to the main frame and each other, with their own intumescent seals at all junctions. During a fire test according to standards like BS EN 1634-1, the entire assembly is subjected to extreme heat and pressure. The door leaves must close and latch correctly, and the seals in the center stile, perimeter, and side panel connections must expand simultaneously to block flames and hot gases, while the glass and framing must maintain insulation to prevent heat transfer. This synchronized performance is what guarantees the certified integrity and insulation for the specified duration.
Architectural Integration and Code Compliance in Modern Buildings
Beyond their critical safety function, double-leaf fire doors with side panels offer significant architectural benefits. The generous glass areas allow for maximum daylight penetration and visual transparency, maintaining an open and inviting environment while delineating safety compartments. This is particularly valuable in modern buildings designed with open-plan philosophies. The systems can be specified with minimal-profile frames to achieve a sleek, contemporary look that aligns with high-end architectural finishes. For building owners and specifiers, selecting a pre-certified system like those from PyroNano simplifies compliance with stringent building codes that mandate protected escape routes and compartmentation. These systems are designed to meet the specific requirements of various international standards, providing documented evidence of their performance. This ensures that the architectural vision for a light-filled, open space does not come at the expense of life safety, offering peace of mind that the opening will perform as a critical fire barrier when needed.
Double-leaf fire doors with integrated side panels are a sophisticated fusion of engineering rigor and architectural elegance. By functioning as a unified system, they provide certified, reliable protection for wide openings, ensuring code compliance while enhancing the spatial quality and safety of modern buildings.
