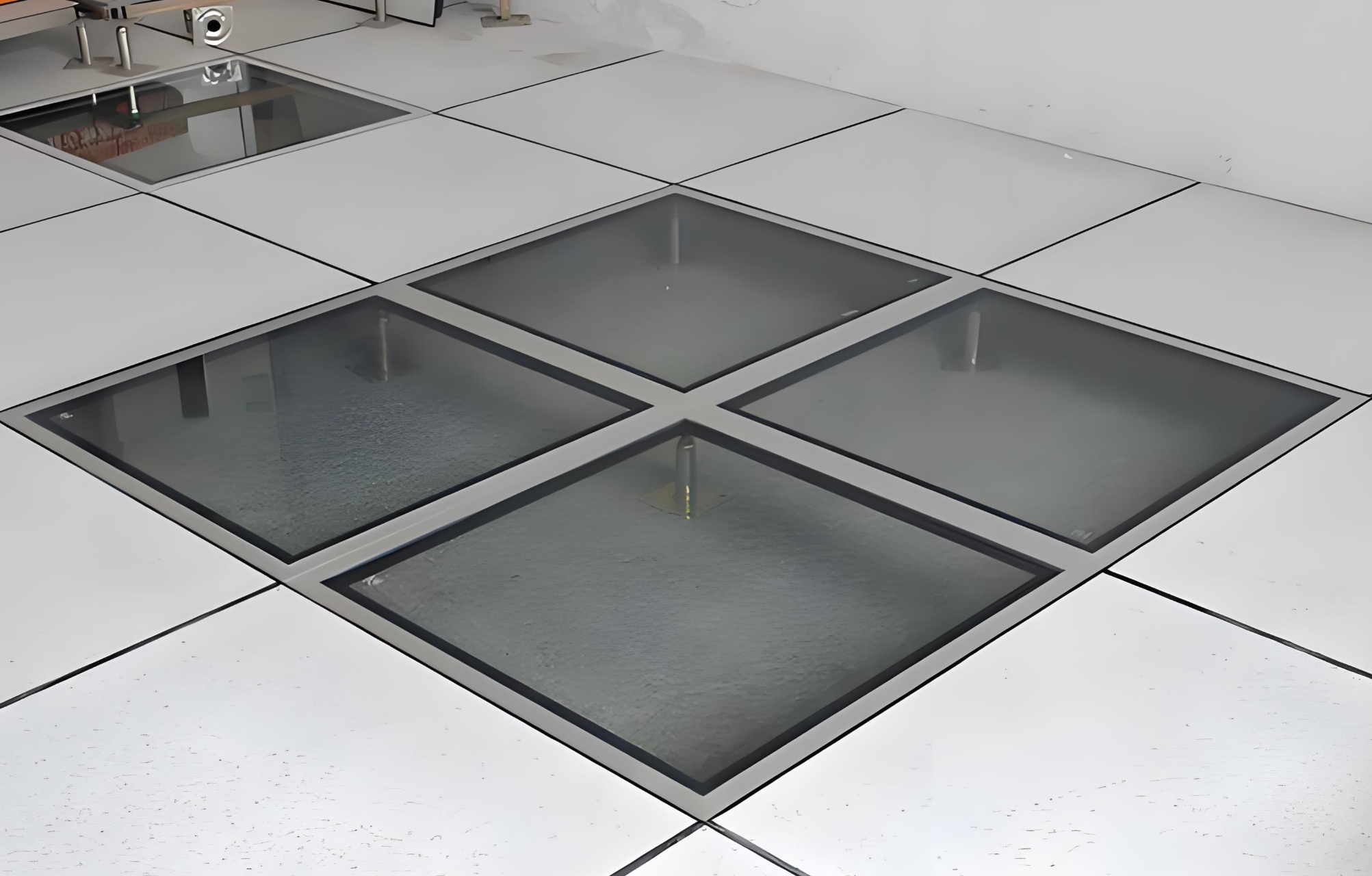

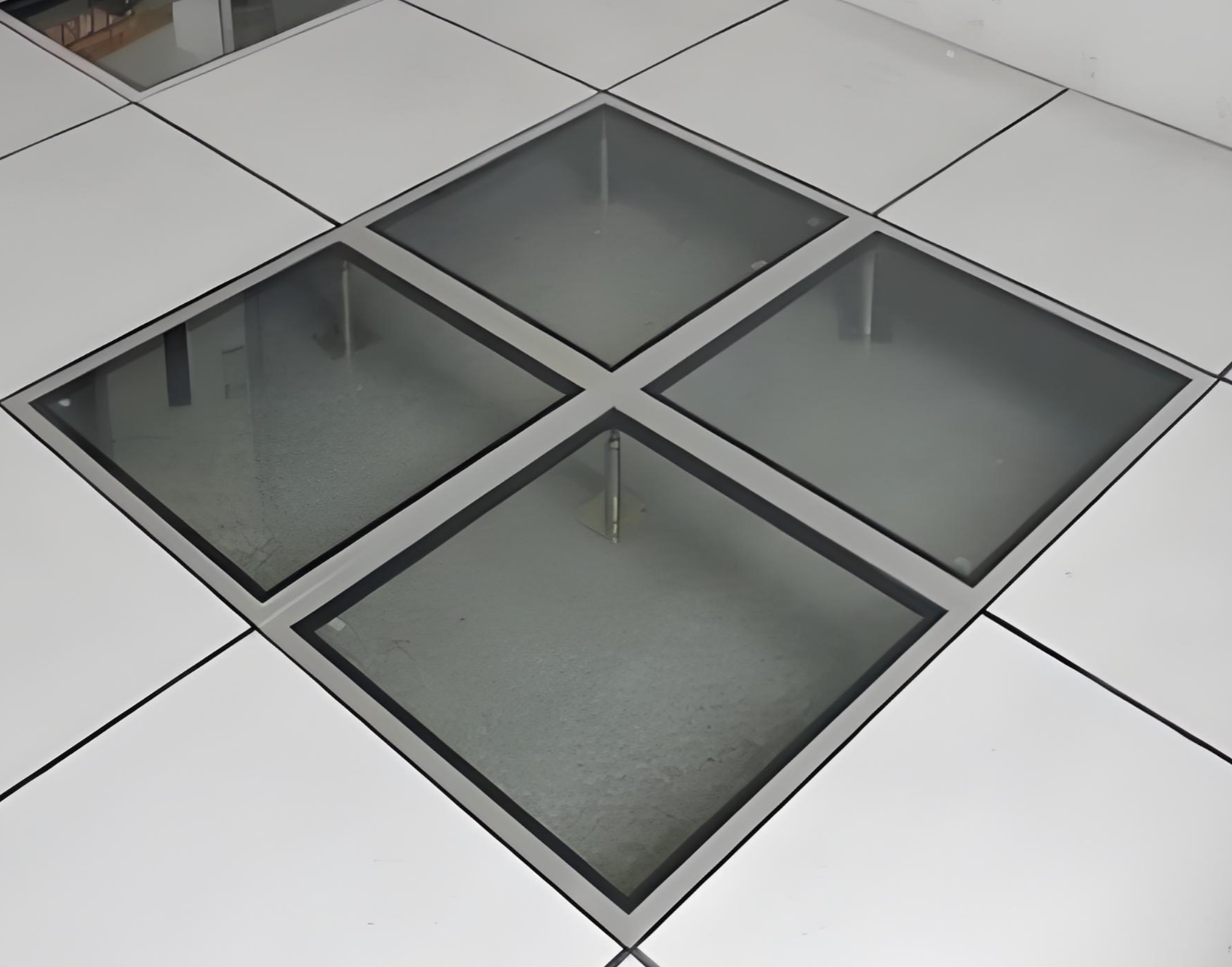

Load-Bearing Glass Floors with EI120 Certification
Load-Bearing Glass Floors with EI120 Certification
The Pinnacle of Performance: Combining Structural Integrity with 2-Hour Fire Resistance
A Load-Bearing Glass Floor with an EI120 certification represents the highest echelon of performance in fire-safe architectural glazing. The "EI120" designation is critical: it certifies that the assembly can withstand a standard fire for 120 minutes while maintaining its structural Integrity (preventing the passage of flames and hot gases) and its Insulation (limiting the temperature rise on the unexposed side). This two-hour rating is often required for floor assemblies separating distinct fire compartments in high-risk or high-rise buildings. Unlike non-load-bearing fire glass, these floors are engineered to support significant live loads (e.g., foot traffic, furniture) in addition to their own weight, all while potentially being exposed to fire from below. PyroNano achieves this through a complex, multi-layer laminated structure. This typically involves several layers of tempered glass bonded with transparent, fire-resistant interlayers and reinforced with other materials, creating a composite panel of exceptional strength and resilience. The EI120 certification provides a critical safety margin, ensuring the floor's stability and protective function for an extended period during an emergency.
Engineering the Invisible Shield: Multi-Layered Lamination and Material Science
The exceptional performance of an EI120-certified glass floor is a feat of advanced material science and precision engineering. The core of its design is a multi-layered laminate. A typical construction might involve multiple thick panels of heat-strengthened or fully tempered glass, bonded with specialized, transparent intumescent interlayers. When exposed to heat from a fire below, these interlayers react by expanding and turning opaque, forming a thick, foamed ceramic-like char layer. This char acts as a highly effective thermal barrier, insulating the upper glass layers from the intense heat and preventing the transmission of temperatures that could cause ignition on the top side. To achieve load-bearing capacity, the total thickness of the assembly is significantly increased compared to wall or door glass, often exceeding 50mm or even 100mm. The specific sequence and thickness of each glass and interlayer are meticulously calculated to distribute structural stresses and optimize fire resistance. This complex composition ensures the floor can bear the designated loads while the intumescent interlayer works to maintain the critical insulation criterion for the full 120-minute duration.
Application and Integration: From Atriums to Luxury Retail Spaces
The application of EI120 load-bearing glass floors is transformative in architectural design, primarily in spaces where visual connectivity and natural light penetration are paramount. A key application is in multi-story atriums, where a glass floor allows light to filter down to lower levels while creating a dramatic, open feel and serving as a critical fire barrier between floors. In luxury retail settings, they are used for mezzanines or as display elements, adding a modern, high-tech aesthetic without compromising safety. In museums or corporate headquarters, they can be incorporated into walkways or bridges, enhancing spatial drama. The successful integration of these floors requires meticulous planning. They must be framed within a certified, load-bearing steel or aluminum perimeter system designed to accommodate thermal expansion during a fire. The installation demands extreme precision to ensure even load distribution and to maintain the integrity of the fire seal at the perimeter. PyroNano's role extends beyond manufacturing the glass panel to providing comprehensive system support, ensuring that the entire assembly—glass, framing, and seals—functions as a unified, certified whole.
Load-Bearing Glass Floors with EI120 certification are a pinnacle of innovation, merging breathtaking architectural transparency with uncompromising structural and fire safety. Through sophisticated multi-layer lamination and rigorous testing, they provide a reliable, long-lasting solution for creating open, light-filled spaces that are as safe as they are stunning.
