How Does 25mm Thick EI60 A-Level Fire-Resistant Glass Ensure Safety？
The Dual Shield: Blocking Flames and Deadly Heat
True fire safety transcends mere visibility. Pyronano's 25mm thick EI60 A-Level Fire-Resistant Glass is engineered to provide a dual shield, offering critical protection against both flames and heat radiation. The "EI60" rating is the key, where "E" signifies integrity—preventing the passage of flames, smoke, and hot gases for 60 minutes. More crucially, the "I" stands for insulation—a property that limits the temperature rise on the protected (non-fire) side. Standard tempered or wired glass may maintain integrity briefly but fails as a heat barrier, allowing radiant heat to ignite materials and endanger lives on the safe side. Pyronano’s specialized 25mm laminated structure incorporates multiple layers of clear glass bonded with transparent, intumescent interlayers. When exposed to extreme heat, these interlayers undergo a controlled chemical reaction, expanding to form a thick, opaque, and insulating char layer. This robust barrier blocks heat transfer effectively, ensuring the temperature on the unexposed surface does not exceed the safety threshold defined by international standards (typically 140°C average, 180°C peak). This thermal insulation is vital for creating safe egress routes, protecting assets, and preventing fire spread in commercial spaces.
Robust Integrity and Structural Stability Under Extreme Conditions
Beyond insulation, maintaining the glass panel’s physical integrity and structural stability during a fire is non-negotiable. The substantial 25mm thickness of Pyronano’s EI60 glass is a fundamental contributor to its strength. This robust build-up resists the intense thermal shocks and pressure differentials caused by a fire, preventing premature cracking, collapse, or the formation of through-openings. The A-Level classification indicates the highest grade of fire-resistant glass, meeting stringent criteria for impact resistance and thermal stability. The laminated interlayers act as a bonding and cushioning system, holding the glass layers together even when they crack under thermal stress. This prevents dangerous fallout and maintains a solid, continuous barrier against smoke and flames. In applications like fire-rated glass partitions, doors, or curtain walls, this integrity ensures the glass remains in its frame, upholding the compartmentation strategy of the building. It effectively seals off the fire compartment, containing the blaze and toxic smoke to its area of origin, which is fundamental for modern fire safety engineering and life preservation.
A Holistic Safety Component in Certified Systems

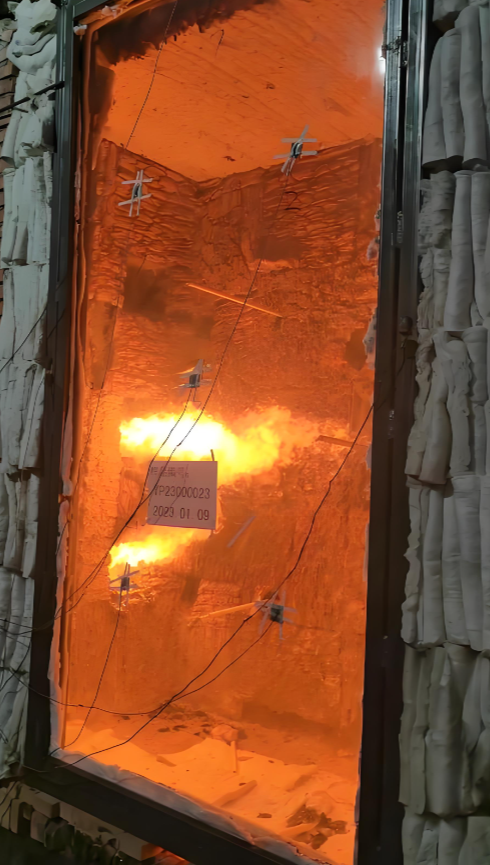

The safety promise of 25mm EI60 A-Level glass is fully realized only when it is integrated into a properly tested and certified glazing system. Pyronano provides not just the glass pane but a complete fire-rated system, including compatible fire-resistant frames (steel or aluminum), seals, hinges, and all necessary hardware. Each component is engineered to withstand the same duration of fire exposure as the glass itself. During a fire resistance test in accredited laboratories, the entire assembly—glass, frame, and seals—is subjected to the standard time-temperature curve. The system must pass both integrity (E) and insulation (I) criteria as a whole to earn the EI60 rating. This systems approach ensures that the weakest link is eliminated. Whether used in a single-leaf door for an office or a large-scale partition in an atrium, the certified system guarantees predictable and reliable performance. Pyronano’s role as a one-stop solution provider—offering technical analysis, product specification, and support—ensures that the installed system delivers the designed fire protection level, complying with international standards like EN, BS, and ASTM.
In summary, Pyronano's 25mm thick EI60 A-Level Fire-Resistant Glass ensures safety through a multi-faceted approach: its intelligent laminated design provides dual protection against both flames and heat transfer; its robust 25mm construction guarantees structural integrity under extreme fire conditions; and its certification as part of a complete glazing system ensures reliable, end-to-end performance. It is more than just glass; it is a critical, life-saving building component that enables architects to design safe, open, and light-filled spaces without compromising on the highest fire safety standards.
