PYRONANO’s Fire-Resistant Glass for External Exposure
PYRONANO’s Fire-Resistant Glass for External Exposure
The Critical Role of External Fire-Rated Glazing
In contemporary architecture, the line between interior and exterior is increasingly blurred by expansive glass facades and curtain walls. While these designs promote openness and natural light, they introduce a critical safety challenge: preventing fire from spreading externallybetween building compartments or adjacent structures. Fire-resistant glass for external exposure is specifically engineered to meet this challenge. Unlike standard internal fire-rated glass, these systems must withstand not only the direct flames and intense heat of a fire from inside a building but also potential thermal shock from external environmental factors like rain or wind during a fire event. PYRONANO’s externally rated glazing solutions, such as their Insulated Glazing Wall system for external exposure, are rigorously tested to international standards (e.g., ASTM E119-15). They are designed to maintain integrity (E), provide insulation (I) – limiting heat transfer to prevent ignition on the protected side – and crucially, resist the structural stresses caused by simultaneous exposure to fire on one side and cooler ambient conditions on the other, ensuring the building envelope remains a secure barrier.
The PYRONANO Difference

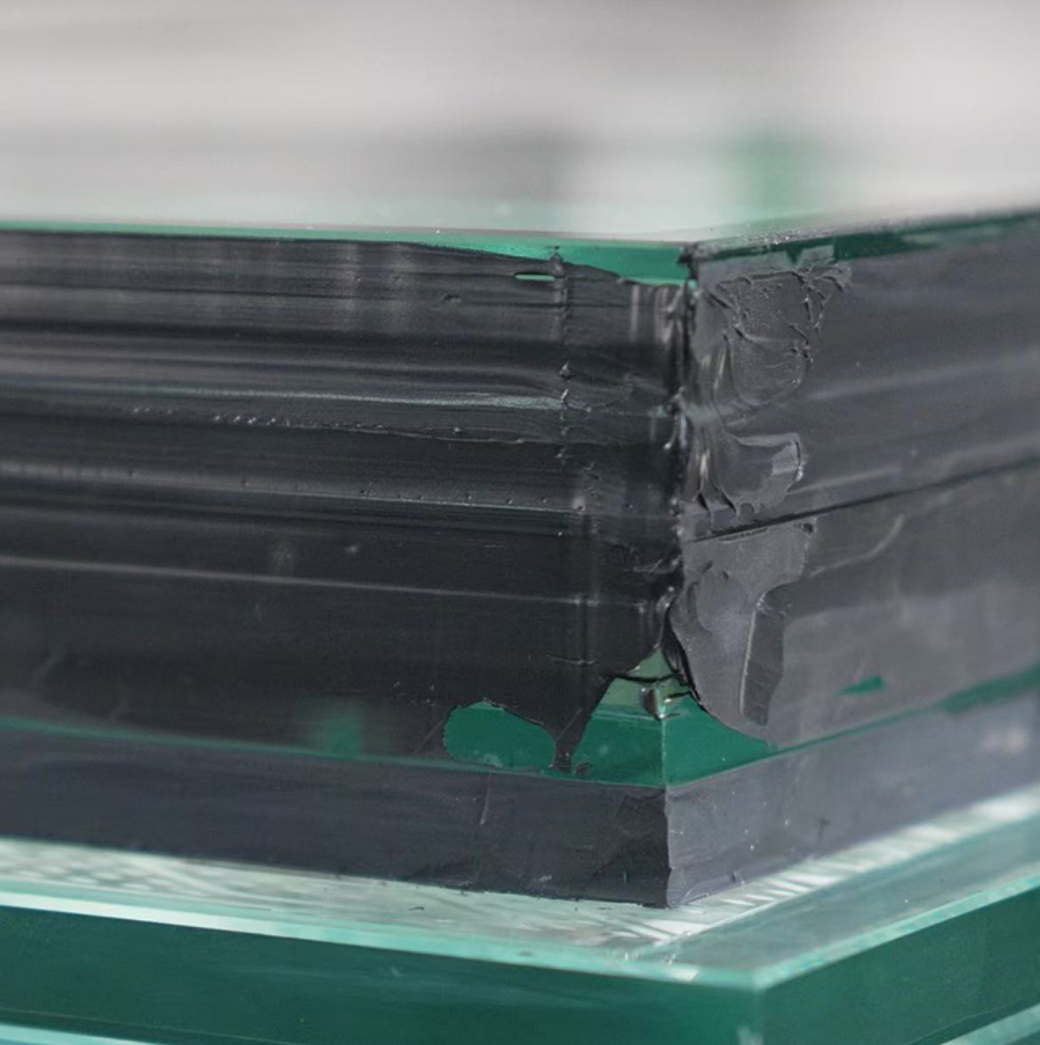

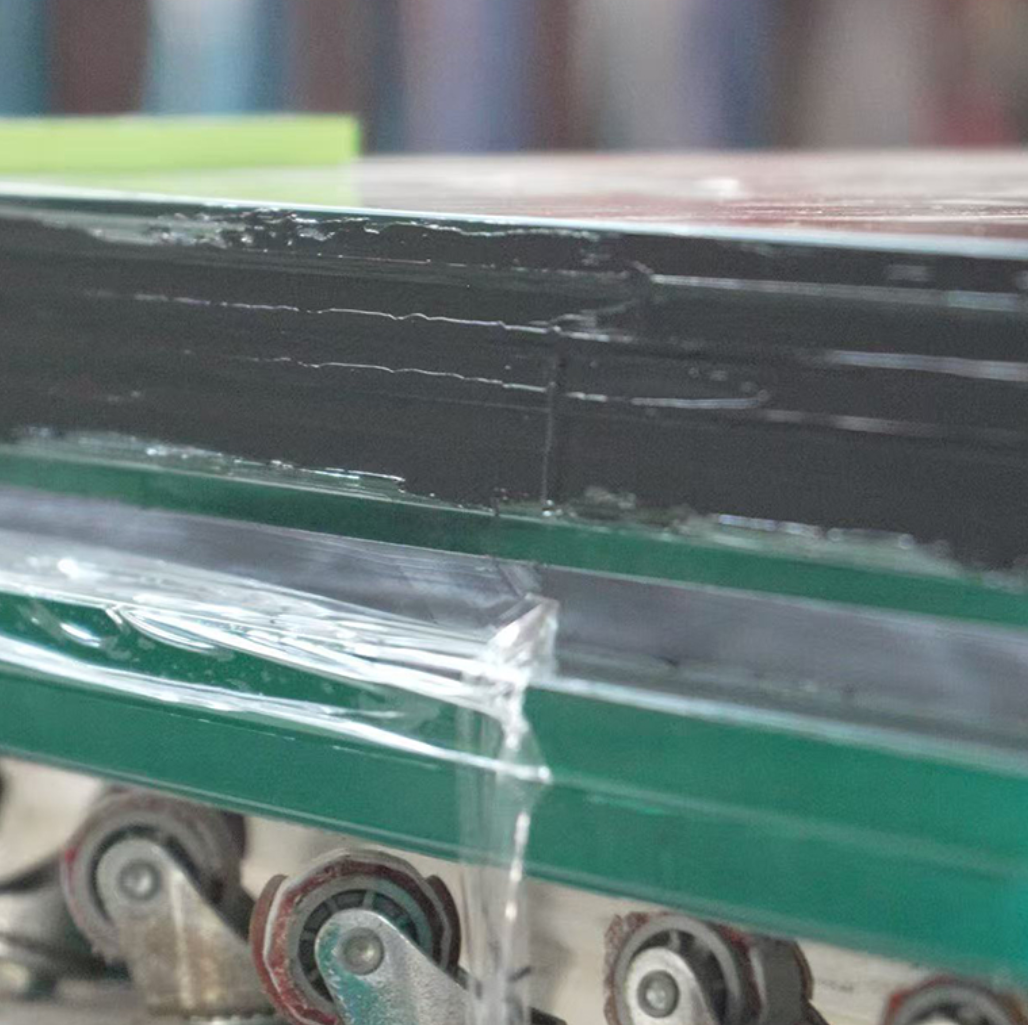

PYRONANO’s externally rated fire-resistant glass systems stand apart due to their sophisticated multi-layer composition and robust engineering. A typical system, as detailed in their certifications, may feature a complex structure like 5G+5F+5G+7F+5G+16A+5G+1.52PVB+5G (54.52mm). This intricate build-up incorporates multiple layers of toughened glass (G), transparent intumescent interlayers (F) that expand to form an insulating barrier, and in some cases, an insulated glass unit (IGU) cavity (A) for enhanced thermal and acoustic performance. The inclusion of a polyvinyl butyral (PVB) interlayer also adds impact resistance and safety. This multi-faceted design is key to achieving high fire ratings like EI60 for external applications. It ensures that the glass assembly remains intact and effectively blocks radiant heat, even when the external face is subjected to cooling forces, a scenario that can cause standard monolithic glass to crack and fail prematurely. This engineering excellence ensures that the glazed facade acts as a reliable fire compartmentation barrier, contributing to overall building safety strategies and compliance with stringent international building codes.
Applications and System Integration in Modern Architecture
The application of PYRONANO’s external fire-resistant glass extends across a wide spectrum of modern architectural features. It is the ideal solution for creating fire-rated curtain walls in commercial towers, atriums, and large public facilities like airports and hospitals, where preventing vertical fire spread is paramount. These systems can also be engineered into fire-resistant vision panels for external walls or as part of a load-bearing glazed flooring system when used in external canopies or bridges, providing both safety and stunning views. A critical aspect of PYRONANO’s offering is its focus on the entire glazed assembly. The performance of the glass is intrinsically linked to the specific framing, seals, and fixings used. PYRONANO provides comprehensive system solutions, ensuring that all components are tested and certified to work together seamlessly. This holistic approach guarantees that the final installed facade or wall will perform as intended under real-world fire conditions, offering architects and specifiers the confidence to push design boundaries without compromising on life safety.
PYRONANO’s fire-resistant glass for external exposure represents the convergence of advanced material science, rigorous testing, and holistic system design. It transforms the modern, glass-intensive building facade from a potential vulnerability into a robust, code-compliant fire barrier. By addressing the unique challenges of external fire spread and environmental exposure, PYRONANO empowers architects to realize their visionary transparent designs, safe in the knowledge that the building’s envelope is engineered to protect lives and property from the threat of fire, both inside and out.
