Many project buyers ask for fire rated glass pricing before providing complete project information. Without proper drawings, suppliers may provide inaccurate quotations that create production delays, installation problems and compliance risks.
Get QuoteWhy Drawings Matter Before Quotation
Fire rated glass is usually customized for each project. Glass size, opening dimensions, frame systems and installation methods often vary significantly between projects.
Without drawings, suppliers may:
Quote incorrect glass sizes
Recommend the wrong frame system
Miss structural limitations
Overlook hardware requirements
Create installation conflicts
1. Floor Plan Drawings
Floor plans help suppliers understand where the fire rated glass will be installed.
Door locations
Partition layouts
Corridor positions
Staircase connections
Room functions
This helps identify application areas and fire safety zones.
2. Elevation Drawings
Elevation drawings show glass height, wall structure and surrounding installation details.
Glass wall height
Door height
Frame visibility
Connection points

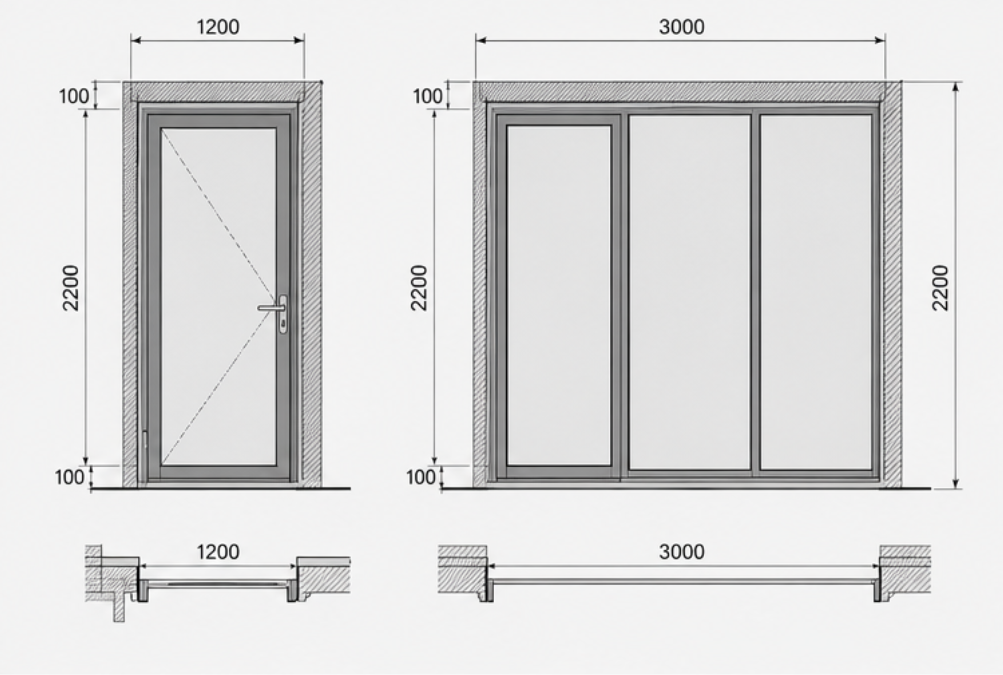

3. Opening Size Drawings
Accurate opening dimensions are critical.
Width
Height
Wall thickness
Tolerance details
4. Door Hardware Drawings
For fire rated glass doors, suppliers need hardware details:
Door closer
Lock
Handle
Panic bar
Access control

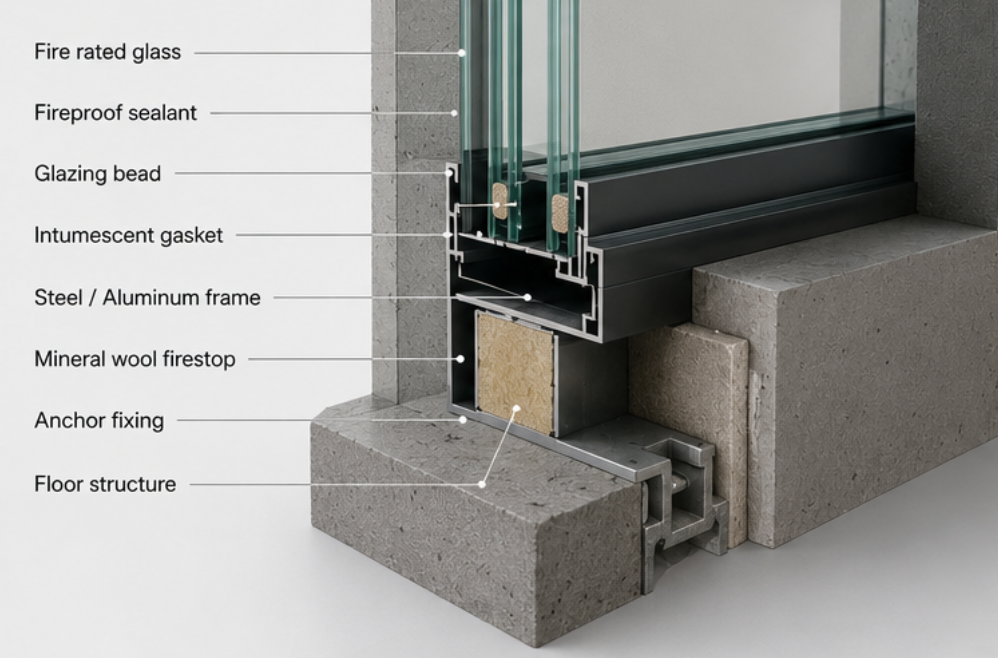

5. Section Drawings
Section drawings help suppliers understand:
Wall connection details
Floor fixing details
Ceiling connections
Structural limitations
If You Don't Have Complete Drawings
Even if your project drawings are incomplete, you can still send:
Site photos
Rough dimensions
Hand sketches
Project descriptions
Reference photos
Our engineering team can help review your project.
Before Quotation Please Send
Project drawings
Required fire rating
Glass application type
Glass quantity
Installation country
Project timeline
