What Contractors Should Check Before Ordering Fire Rated Glass For A Project
What Contractors Should Check Before Ordering Fire Rated Glass For A Project
Fire rated glass is a project-based building material. Before ordering, contractors should confirm fire rating, drawings, glass size, frame system, hardware, installation conditions, packing method and delivery schedule to avoid costly mistakes.
Get QuoteWhy Contractors Need A Pre-Order Checklist
Fire rated glass is not a standard decorative glass product. It must match the building’s fire compartment design, project drawings and installation system. If a contractor orders the wrong specification, the project may face installation failure, inspection problems, replacement cost or schedule delay.
1. Confirm The Fire Rating
Contractors should first confirm whether the project requires EI30, EI60, EI90 or EI120 fire rated glass. Different fire zones have different requirements, and choosing the wrong rating can create compliance risk.
EI30: internal partitions and lower-risk areas
EI60: corridors, offices, hotels and standard commercial zones
EI90: staircases, escape routes and public buildings
EI120: data centers, electrical rooms and critical fire zones
2. Check Drawings And Opening Dimensions
Accurate drawings are essential before production. Contractors should confirm floor plans, elevations, sections, opening width, opening height, wall thickness and final glass layout. If site measurements are different from drawings, the glass may not fit during installation.
3. Verify Frame And System Compatibility
Fire rated glass performance depends on the complete system. The glass, frame, fireproof sealant, gasket, glazing bead and fixing method must work together. Contractors should confirm whether the frame depth, material and profile design match the selected glass thickness and fire rating.

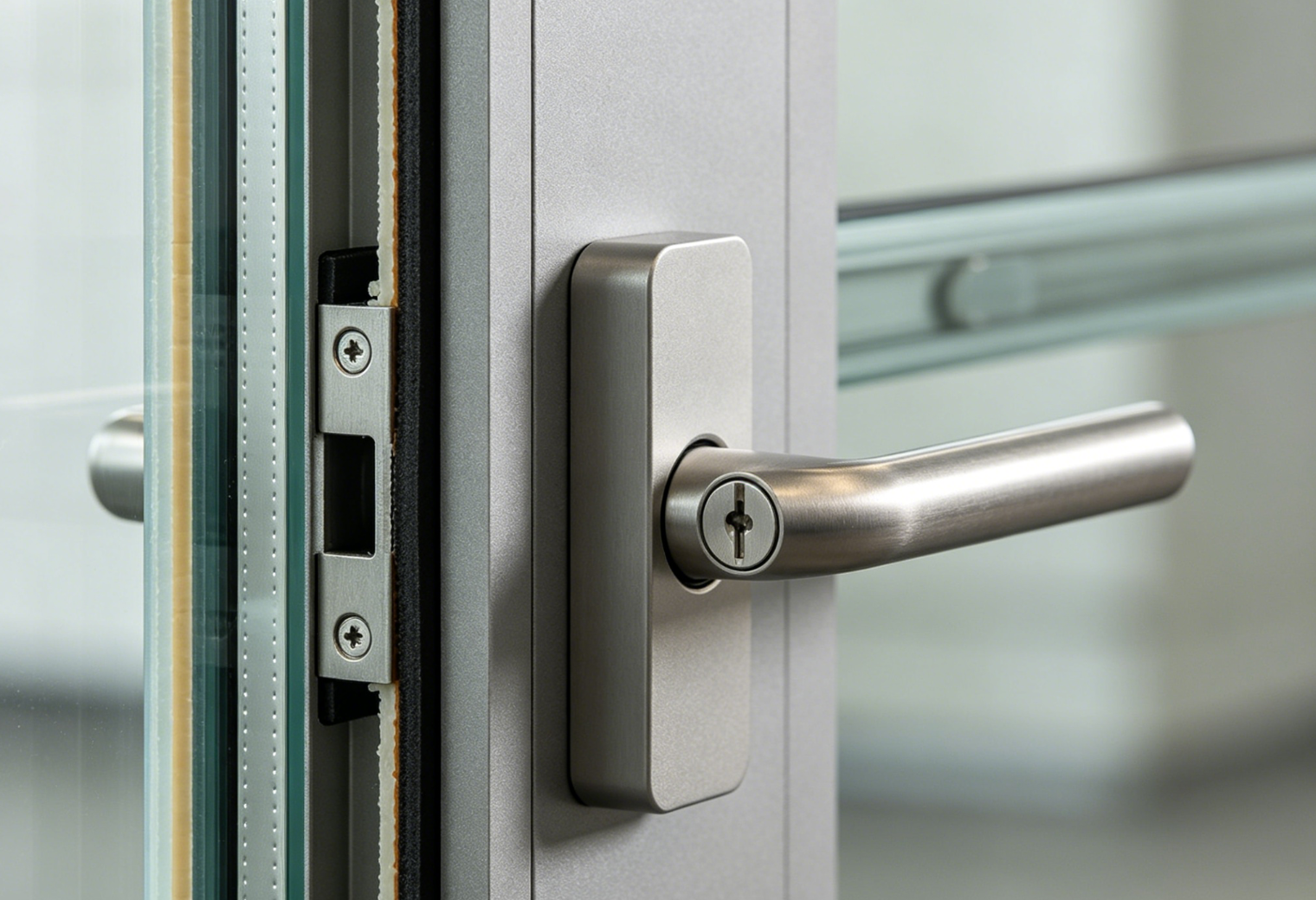

4. Confirm Door Hardware If Doors Are Included
For fire rated glass doors, hardware is not optional. Door closers, hinges, locks, handles, panic bars and access control devices may affect cost, lead time and installation method. Contractors should confirm hardware requirements before quotation.
Single door, double door or door with side panels
Opening direction and evacuation flow
Door closer and hinge type
Panic bar or access control requirement
Frame finish and hardware finish
5. Review Installation Conditions
Installation conditions can change the final system recommendation. Contractors should check wall type, floor level, ceiling connection, site access, lifting condition and installation sequence. Oversized panels, high-rise buildings and renovation projects usually need extra review.
6. Check Export Packing And Delivery Schedule
Fire rated glass is heavy and fragile. Contractors should confirm reinforced wooden crates, corner protection, panel separation, container loading plan and delivery schedule before shipment. Poor packing can cause breakage and delay the entire project.
Contractor Pre-Order Checklist
Required fire rating: EI30, EI60, EI90 or EI120
Application area: door, wall, partition, corridor or staircase
Project drawings and actual site measurements
Glass size, thickness and quantity
Frame material, profile and finish
Sealant, gasket and glazing method
Door hardware and access control requirements
Installation wall type and site access
Export packing and delivery deadline
Conclusion
Before ordering fire rated glass, contractors should not only compare price. Fire rating, drawings, frame compatibility, hardware, installation conditions and export packing must all be checked carefully. A clear pre-order review helps reduce rework, delays and compliance risk.
