25mm EI60 Fire-Resistant Glass: Applications in High-Rises
25mm EI60 Fire-Resistant Glass: Applications in High-Rises
The Engineering Ideal: Balancing Critical Performance with Structural Practicality

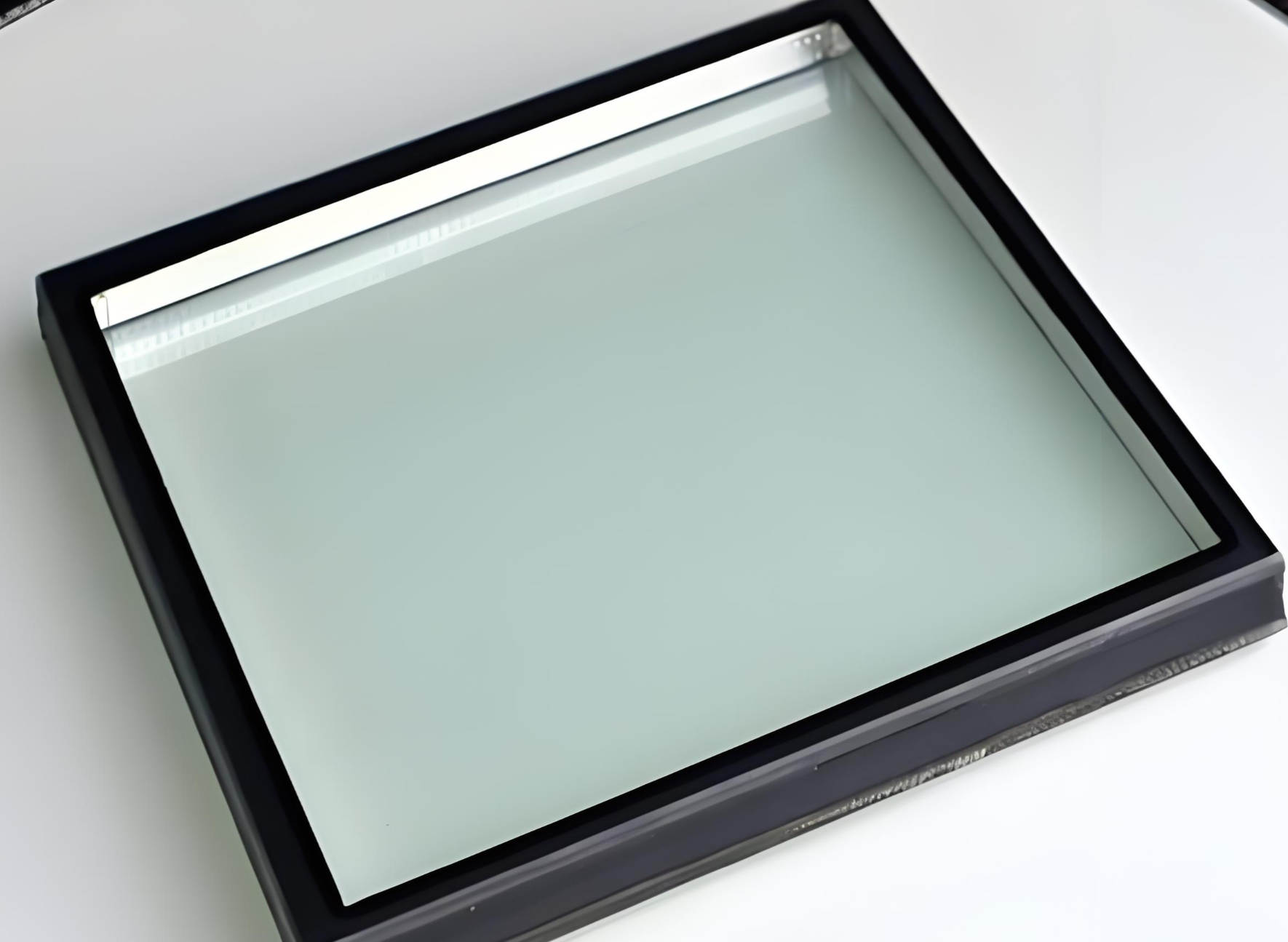

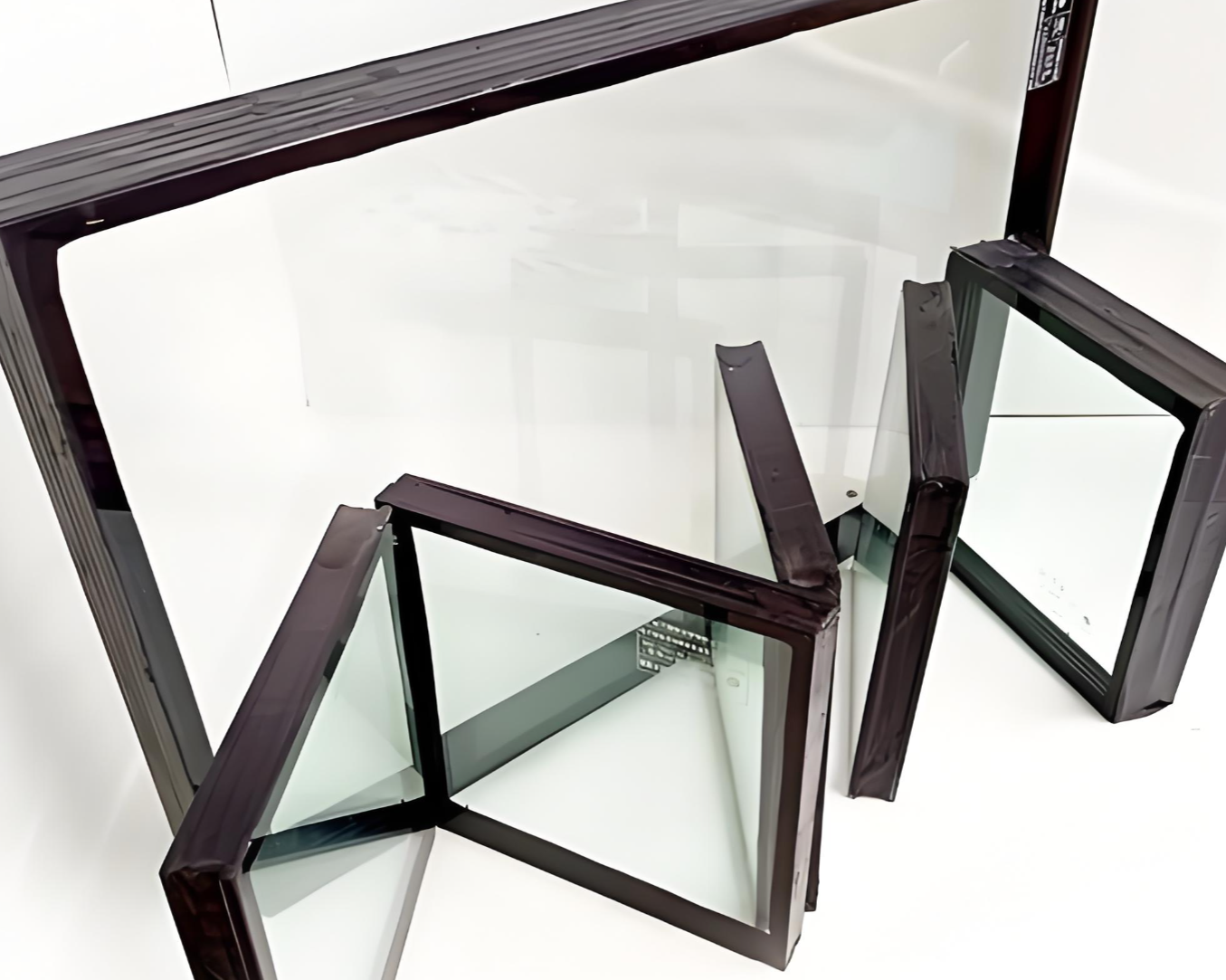

The 25mm EI60 fire-resistant glass represents a pinnacle of engineering optimization for high-rise applications. The "EI60" classification signifies that the glass assembly provides 60 minutes of integrity (E) – preventing the passage of flames and smoke – and insulation (I) – limiting heat transfer to the unexposed side. This one-hour rating is a fundamental requirement for fire compartmentation in escape stairwells, corridors, and other critical areas within skyscrapers. The 25mm thickness is a key advantage; it is substantial enough to achieve the rigorous EI60 performance yet slim enough to minimize its weight and space footprint. This is crucial in tall buildings where every kilogram and millimeter of dead load and spatial usage is meticulously calculated. PyroNano achieves this with a multi-layer laminated structure, typically involving layers of glass bonded with transparent intumescent interlayers that expand under heat to form an opaque, insulating barrier. This combination of certified performance and practical dimensions makes the 25mm EI60 glass an ideal choice for modern high-rise construction.
Key Application Scenarios: Enhancing Safety and Aesthetics in Skyscrapers
In high-rise buildings, the 25mm EI60 glass is strategically deployed in several vital applications. Firstly, it is extensively used in fire-rated corridors and elevator lobbies, creating transparent barriers that compartmentalize fire zones without creating the visual oppression of solid walls, thus maintaining an open, spacious feel. Secondly, it is the preferred material for stairwell enclosures, ensuring that escape routes remain tenable for 60 minutes, which is critical for occupant evacuation and firefighter access. The glass's clarity provides psychological reassurance by maintaining visual contact with the outside. Thirdly, it is engineered for use in curtain walls and spandrel panels where fire resistance between floors is required. Its ability to integrate with structural framing systems while meeting strict safety codes allows architects to design stunning, light-filled facades that are also inherently safe. The material's stability also minimizes deflection under high wind pressures encountered at elevated heights.
Beyond Compliance: The PyroNano Advantage in High-Rise Integration
Choosing PyroNano's 25mm EI60 glass offers benefits that extend beyond mere regulatory compliance. The company's expertise ensures that the glass is compatible with high-performance framing systems, creating a seamless and certified assembly crucial for overall fire resistance. Furthermore, PyroNano can supply oversized panels, reducing the number of joints and frames for a cleaner, more continuous aesthetic in expansive lobby areas. Their focus on quality control guarantees consistency across large orders, a necessity for projects encompassing hundreds of glass units. Additionally, the glass can be treated to offer supplementary properties such as solar control or sound insulation, adding value without compromising the core fire safety function. This holistic approach, backed by international certifications (like BS EN) and comprehensive technical support, provides developers and architects with a reliable, single-source solution for integrating superior fire protection into the most ambitious high-rise designs.
The 25mm EI60 fire-resistant glass is not just a building material but a critical safety system engineered for the unique demands of high-rise architecture. By offering a perfect synergy of one-hour fire resistance, manageable weight, and design versatility, it enables the creation of safer, more transparent, and aesthetically pleasing skyscrapers. PyroNano's technical expertise in manufacturing and integrating this glass ensures that safety and design excellence go hand in hand.
