How To Prepare Drawings Before Sending A Fire Rated Glass Inquiry
How To Prepare Drawings Before Sending A Fire Rated Glass Inquiry

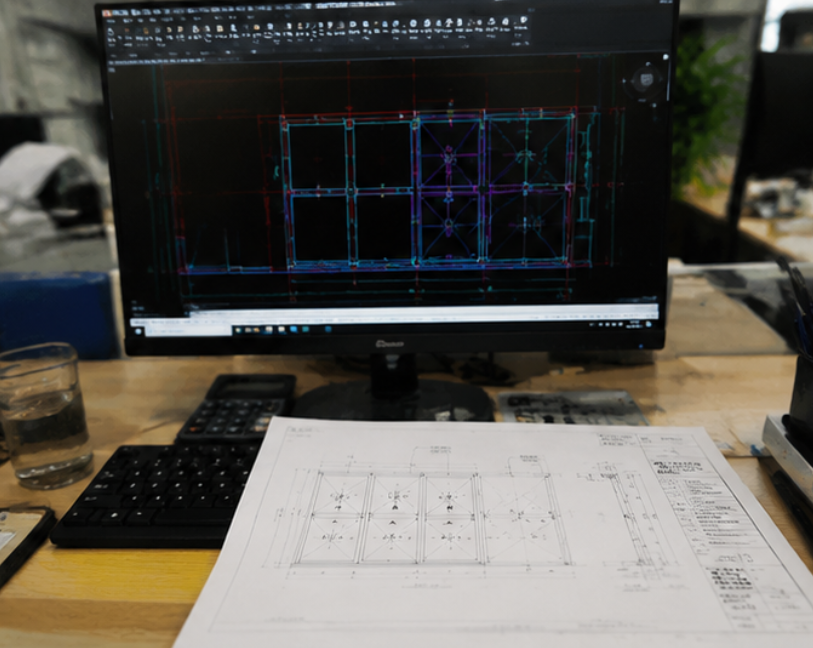

Providing accurate and complete drawings is essential when requesting a quotation for fire rated glass. Proper drawings ensure that suppliers understand panel size, fire rating, frame compatibility, and installation requirements, reducing errors, rework, and project delays.
Get QuoteWhy Drawings Are Critical For Fire Rated Glass Inquiries
Fire rated glass is part of a complete safety system. Suppliers rely on detailed drawings to confirm panel size, thickness, frame system, door hardware, and compliance with local fire codes. Incomplete or inaccurate drawings can result in incorrect quotations, installation issues, or rejected deliveries.
1. Include Project Information
Clearly specify project name, location, point of contact, and required delivery date. This ensures the supplier can prepare a quote aligned with project timelines.
2. Provide Accurate Panel Dimensions
Include width, height, thickness, and the layout of each panel. Note any oversized or irregular panels. Accurate measurements prevent misfit panels and installation delays.
3. Specify Frame Type And Seals
Indicate frame type (steel, aluminum, or frameless), glazing beads, gaskets, and fireproof seals. Clarify whether the RFQ is for glass only or includes the full frame system.
4. Detail Door Hardware
For doors, include door closers, hinges, locks, handles, panic bars, and access control requirements. Proper hardware ensures fire rating compliance and smooth installation.
5. Include Installation Site Conditions
Note wall type, floor and ceiling levels, access for lifting panels, and any renovation constraints. This ensures the supplier can evaluate feasibility and recommend support structures if needed.
6. Attach Relevant Documentation
Include floor plans, elevations, section drawings, and door schedules. Supplementary notes about fire code requirements, ceiling height, and special design features improve accuracy.
Fire Rated Glass RFQ Drawing Checklist
Project name, location, contact information
Delivery date requirements
Panel width, height, thickness, and layout
Oversized or irregular panel specifications
Frame type, profile, glazing beads, seals, and gaskets
Door hardware requirements: closer, hinge, lock, handle, panic bar
Wall type, floor and ceiling details, site access
Floor plan, elevation, and section drawings
Door schedules and special design notes
Fire code references or special compliance notes
Conclusion
Preparing detailed and accurate drawings before sending a fire rated glass inquiry reduces errors, ensures correct quotations, and minimizes installation issues. Contractors should provide complete project, glass, frame, hardware, and site information for a smooth procurement process.
Need Help Preparing Fire Rated Glass Drawings?
Send your drawings, panel specifications, fire rating, and site information. Our team will review and help prepare an accurate RFQ for your project.
Contact Us Get QuoteBuyer focused optimization notes
This additional project note explains drawing preparation from a practical buyer and contractor point of view. The article is mainly useful for architects and contractors who need reliable supplier feedback. In real projects, drawings prepared before sending a fire rated glass inquiry can affect approval, installation time, and final handover. Before placing an order, buyers should compare the requested fire rating with the glass make up, frame system, hardware plan, packing method, certificate scope, and site conditions. This keeps the article closer to search intent from contractors, architects, fire safety consultants, hotel owners, data center builders, commercial developers and import buyers who are searching for reliable fire rated glass solutions.
How PyroNano product pages support this topic
For a full specification check, buyers can start from the fire rated glass product range, fire resistant glass, fire rated glass. Projects that require transparent fire separation usually compare 1 hour fire glass, NanoFlam EL 60, NanoFlam EL 120 with door, partition and oversized glass options. Door related inquiries should also review fire resistant glass door systems, fire resistant glass door, fire rated glass sliding door, while interior separation work often needs fire resistant glass partition, fire rated glass partition system. Linking these pages from the guide helps visitors move from a problem explanation to a suitable product path without leaving the site.
Key information to confirm before quotation
The most useful quotation package should include elevation, section, opening size, frame detail, glass type, fire rating, hardware location and revision date. Buyers should also provide floor plans, elevations, section drawings, quantity tables, installation location, target fire rating, expected certificate standard, delivery deadline and any special site restrictions. If the project involves doors, the door schedule should show clear width, clear height, opening direction, hardware set, lock requirement, closer type and access control interface. If it involves partitions or walkable glass, the supplier needs panel layout, support condition, frame profile and maximum glass size.
Technical checks that reduce rework
Technical checking should happen before production, not only after the goods arrive. The team should compare approved drawings with site measurements, verify whether the opening is finished or rough, and confirm whether the frame is installed before or after the wall finish. Seal path, fixing method, glass clearance and frame tolerance must be reviewed together because fire rated glass is a system, not a single sheet of glass. When a mismatch is discovered early, the supplier can adjust drawings or recommend another solution, which is usually faster and cheaper than replacing glass after shipment.
Related product and project resources
Useful reference pages for this topic include fire resistant glass, NanoFlam EL 120, fire resistant glass door systems, fire rated glass sliding door, oversized fire resistant glass, fire rated glass certificates, product testing center, technical support. Buyers looking for project evidence can also check fire resistant glass doors and windows cases, fire resistant glass walls and partitions cases. For quality control, the product testing center and packing and shipping process pages explain how the company supports inspection, packing, shipping and documentation. These internal links make the news page more useful for both users and search engines because the article now connects the problem, the product category, test evidence, case reference and supplier capability.
Inspection notes for site teams
On site, the installation team should photograph the opening before installation, after frame fixing, after glass placement and after final adjustment. The photos should include label visibility, seal continuity, frame alignment, hardware position and any repaired wall areas. For doors, test self closing action several times and check whether the latch engages without forcing. For partitions, check joint lines and frame movement. For oversized glass, confirm lifting route, edge protection and final support condition. These records help the buyer answer inspector questions and protect the project if another trade later damages the opening.
Practical example for buyers
For example, a buyer may send only an opening width and a product name, but the supplier still needs the finished opening, frame depth, required fire rating, door handing, packing expectation and certificate requirement before production can be planned. A small missing detail can create a chain reaction: drawings need revision, the quotation changes, crate labels are adjusted, and site teams lose time during installation. Treating the inquiry as a project package instead of a short product request makes the order easier to approve and easier to install.
Procurement advice for international buyers
International buyers should ask for a complete document package before shipment. A strong package normally includes product drawings, packing list, crate marks, certificate reference, installation notes, maintenance guidance and contact information for technical support. For repeat projects, keeping the same naming method for drawings, door marks, crate numbers and photos makes future orders easier to manage. When buyers need a quick comparison, they can review 1 hour fire glass, NanoFlam EL 60, fire resistant glass door systems, fire rated glass sliding door, fire rated glass certificates, fire resistant glass walls and partitions cases, packing and shipping process, technical support and then send a focused inquiry to PyroNano with the project drawings and schedule.
Summary for better project results
The main lesson is simple: confirm the system before confirming the order. Fire rated glass performance depends on the selected glass, compatible frame, correct hardware, tested seal method, site tolerance and installation sequence. A buyer who prepares these details early can reduce replacement risk, avoid wrong assumptions, improve approval speed and shorten project handover. For more options, continue with fire rated glass product range, fire resistant glass, fire rated glass, fire resistant glass door systems, fire resistant glass partition, fire rated glass certificates, product testing center, technical support and choose the product path that matches the required fire rating and installation scenario.
