What Causes Gaps Around Fire Rated Glass After Installation
What Causes Gaps Around Fire Rated Glass After Installation

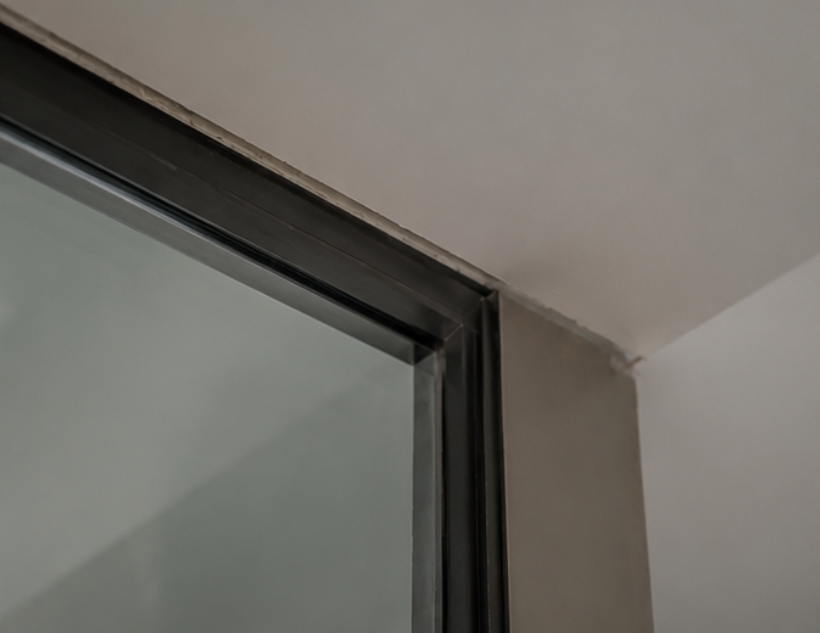

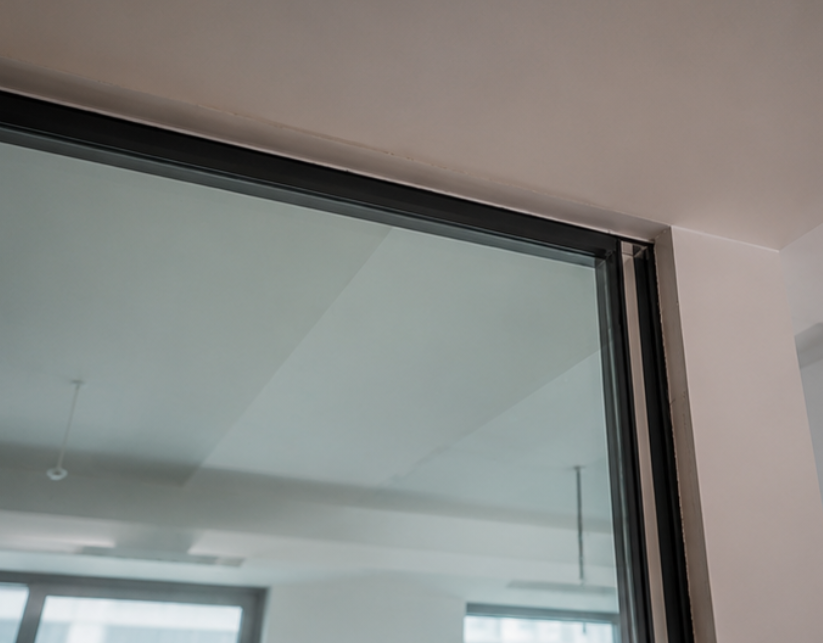

Gaps around fire rated glass after installation are usually caused by inaccurate opening measurements, poor wall tolerance, frame movement, wrong seal selection, incorrect glass size or improper installation sequence.
Get QuoteWhy Gaps Around Fire Rated Glass Matter
Fire rated glass must work as part of a complete fire protection system. The glass, frame, fireproof sealant, gasket and wall opening need to fit correctly. If visible gaps appear after installation, the system may face smoke leakage, poor appearance, failed inspection or costly rework.
1. Opening Size Was Not Measured Correctly
One of the most common causes is inaccurate site measurement. Contractors may only measure one point of the opening, while the actual wall may be wider at the top, narrower at the bottom or uneven on both sides.
Measure width at top, middle and bottom.
Measure height on both left and right sides.
Check wall thickness before ordering.
Confirm final size after floor and wall finishing.
2. Wall Tolerance Was Ignored
Wall tolerance directly affects frame installation. If the wall is not straight, level or square, the fire rated glass frame may not sit evenly. This can create uneven gaps between the frame and wall.
3. Frame Shifted During Or After Installation
Fire rated glass panels are usually heavy. If the frame fixing points are weak, uneven or not suitable for the wall structure, the frame may move slightly after installation. This can change the gap around the glass or door.
Frame movement is more likely in oversized glass walls, high-traffic door systems and renovation projects with old wall structures.
4. Wrong Seal Or Gasket Was Used
Fireproof seals and gaskets must match the system design. If the gasket is too thin, too hard or installed incorrectly, it may not fill the required space. Ordinary sealants should not be used as a substitute for proper fireproof sealing materials.
5. Glass Size And Frame Size Were Confused
Some buyers provide visible glass size, while others provide rough opening size or frame outside size. If the supplier and contractor do not confirm which size is being used, the final product may leave unexpected gaps.
Confirm rough opening size.
Confirm frame outside size.
Confirm visible glass size.
Confirm installation clearance.
Gap Prevention Checklist Before Ordering
Measure the opening at multiple points.
Check wall verticality and flatness.
Confirm frame size, glass size and opening size separately.
Choose suitable fireproof seals and gaskets.
Confirm wall type and fixing method.
Review drawings before production.
Check installation clearance and frame depth.
Send site photos if the wall is uneven.
Conclusion
Gaps around fire rated glass after installation usually come from measurement errors, wall tolerance issues, frame movement, wrong sealing materials or size misunderstanding. Contractors can reduce these risks by checking actual site conditions, confirming dimensions clearly and reviewing the complete frame system before production.
