Why Fire Rated Glass Doors Do Not Close Properly On Site
Why Fire Rated Glass Doors Do Not Close Properly On Site
Fire rated glass doors are designed to close automatically to maintain fire compartment protection. When doors fail to close properly on site, the cause is often related to frame alignment, door closers, hardware configuration, wall tolerance or installation quality rather than the glass itself.
Get QuoteWhy Door Closing Performance Matters
A fire rated glass door is not only an entrance system. It is part of the building fire protection strategy. If the door cannot close completely, smoke and fire separation performance may be compromised, creating inspection problems and safety risks.
In hotels, hospitals, office buildings, schools and public facilities, improper door closing is one of the most common issues found during final project inspections.

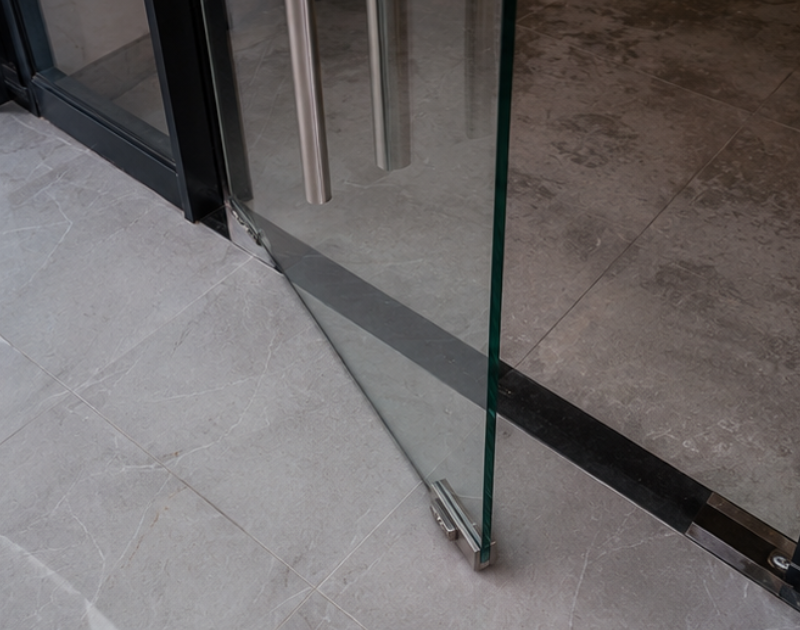

1. Frame Alignment Problems
One of the most common causes is poor frame alignment. If the frame is not level, square or properly fixed, the door leaf may rub against the frame or floor.
Uneven wall opening
Frame twisting during installation
Incorrect fixing points
Floor level differences
Wall tolerance issues
Even a small alignment error can affect door movement and prevent proper closing.

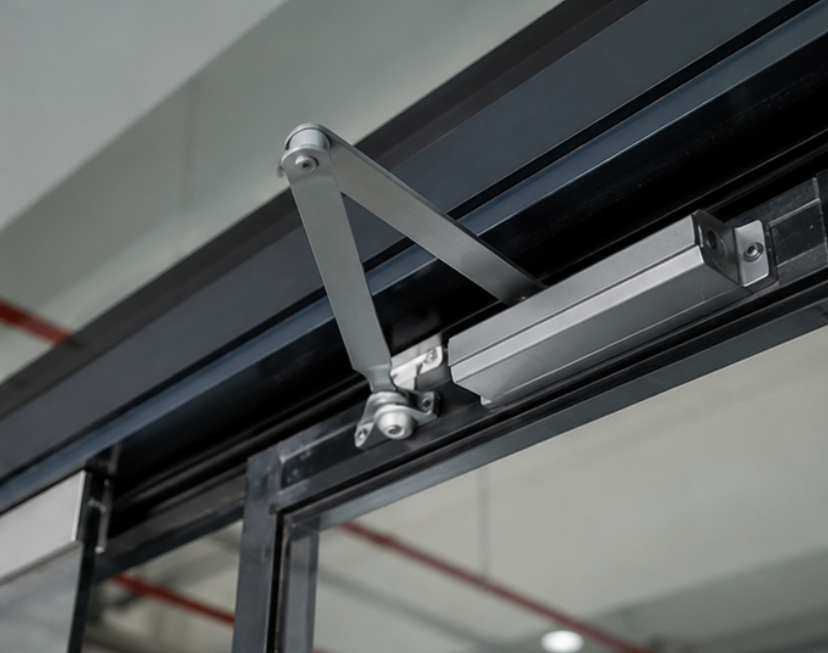

2. Door Closer Selection Is Incorrect
Fire rated glass doors are heavier than ordinary doors. If the door closer is too weak, the door may not have enough force to close fully.
If the closer is too strong, the door may slam, causing hardware wear and alignment problems over time.

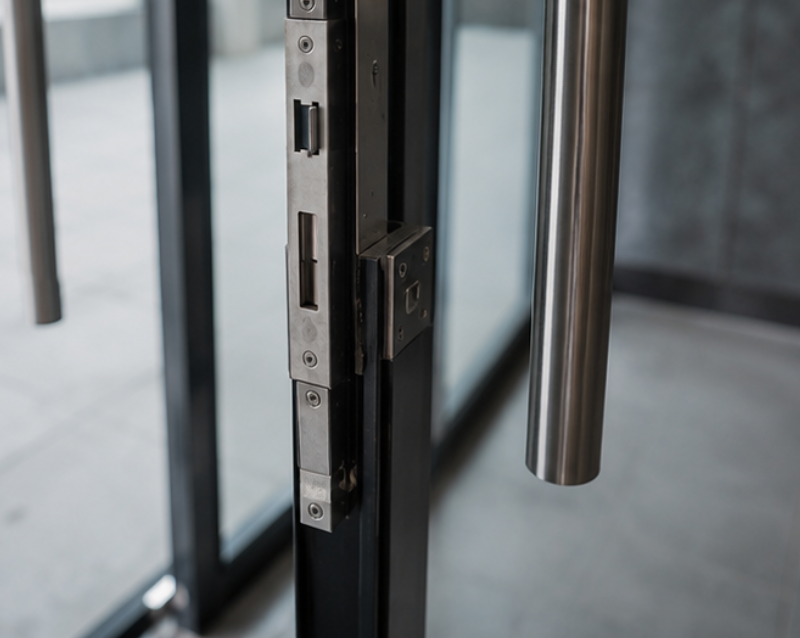

3. Hardware Compatibility Issues
Hinges, locks, panic bars and access control devices can all affect door movement. Hardware that is not properly aligned may create resistance and prevent complete closing.
Misaligned lock strike plates
Incorrect hinge positioning
Panic bar interference
Access control installation errors
Improper hardware adjustment
4. Glass Weight Was Not Considered
Higher fire ratings usually require thicker and heavier glass. EI60, EI90 and EI120 doors may weigh significantly more than standard doors.
If the frame, hinges or closer were selected without considering the actual glass weight, long-term performance may be affected.
5. Seals And Gaskets Create Resistance
Fireproof seals and gaskets are necessary for system performance, but if they are installed incorrectly or compressed excessively, they may create additional resistance during closing.
Contractors should check seal position, gasket condition and frame clearance during commissioning.
Site Inspection Checklist
Check frame alignment and level.
Verify door closer selection.
Inspect hinge and lock alignment.
Confirm panic bar operation.
Review seal and gasket installation.
Check floor clearance.
Confirm glass weight and hardware compatibility.
Perform repeated opening and closing tests.
Conclusion
Fire rated glass doors usually fail to close properly because of installation issues, frame alignment problems, hardware mismatch or incorrect closer selection. Early inspection and proper commissioning can help contractors avoid rework and improve project acceptance rates.
Need Help With Fire Rated Glass Door Systems?
Send us your door schedule, hardware requirements and project drawings. Our team will help review the complete fire rated glass door system before production.
Contact Us Get QuoteBuyer focused optimization notes
This additional project note explains door closing failure from a practical buyer and contractor point of view. The article is mainly useful for contractors checking closer action and frame alignment. In real projects, fire rated glass doors that rub, rebound or fail to latch can affect approval, installation time, and final handover. Before placing an order, buyers should compare the requested fire rating with the glass make up, frame system, hardware plan, packing method, certificate scope, and site conditions. This keeps the article closer to search intent from contractors, architects, fire safety consultants, hotel owners, data center builders, commercial developers and import buyers who are searching for reliable fire rated glass solutions.
How PyroNano product pages support this topic
For a full specification check, buyers can start from the fire rated glass product range, fire resistant glass, fire rated glass. Projects that require transparent fire separation usually compare 1 hour fire glass, NanoFlam EL 60, NanoFlam EL 120 with door, partition and oversized glass options. Door related inquiries should also review fire resistant glass door systems, fire resistant glass door, fire rated glass sliding door, while interior separation work often needs fire resistant glass partition, fire rated glass partition system. Linking these pages from the guide helps visitors move from a problem explanation to a suitable product path without leaving the site.
Key information to confirm before quotation
The most useful quotation package should include hinge verticality, closer speed, latch engagement, floor level, frame square, seal pressure and access control clearance. Buyers should also provide floor plans, elevations, section drawings, quantity tables, installation location, target fire rating, expected certificate standard, delivery deadline and any special site restrictions. If the project involves doors, the door schedule should show clear width, clear height, opening direction, hardware set, lock requirement, closer type and access control interface. If it involves partitions or walkable glass, the supplier needs panel layout, support condition, frame profile and maximum glass size.
Technical checks that reduce rework
Technical checking should happen before production, not only after the goods arrive. The team should compare approved drawings with site measurements, verify whether the opening is finished or rough, and confirm whether the frame is installed before or after the wall finish. Seal path, fixing method, glass clearance and frame tolerance must be reviewed together because fire rated glass is a system, not a single sheet of glass. When a mismatch is discovered early, the supplier can adjust drawings or recommend another solution, which is usually faster and cheaper than replacing glass after shipment.
Related product and project resources
Useful reference pages for this topic include fire resistant glass, NanoFlam EL 120, fire resistant glass door systems, fire rated glass sliding door, oversized fire resistant glass, fire rated glass certificates, product testing center, technical support. Buyers looking for project evidence can also check fire resistant glass doors and windows cases, fire resistant glass walls and partitions cases. For quality control, the product testing center and packing and shipping process pages explain how the company supports inspection, packing, shipping and documentation. These internal links make the news page more useful for both users and search engines because the article now connects the problem, the product category, test evidence, case reference and supplier capability.
Inspection notes for site teams
On site, the installation team should photograph the opening before installation, after frame fixing, after glass placement and after final adjustment. The photos should include label visibility, seal continuity, frame alignment, hardware position and any repaired wall areas. For doors, test self closing action several times and check whether the latch engages without forcing. For partitions, check joint lines and frame movement. For oversized glass, confirm lifting route, edge protection and final support condition. These records help the buyer answer inspector questions and protect the project if another trade later damages the opening.
Procurement advice for international buyers
International buyers should ask for a complete document package before shipment. A strong package normally includes product drawings, packing list, crate marks, certificate reference, installation notes, maintenance guidance and contact information for technical support. For repeat projects, keeping the same naming method for drawings, door marks, crate numbers and photos makes future orders easier to manage. When buyers need a quick comparison, they can review 1 hour fire glass, NanoFlam EL 60, fire resistant glass door systems, fire rated glass sliding door, fire rated glass certificates, fire resistant glass walls and partitions cases, packing and shipping process, technical support and then send a focused inquiry to PyroNano with the project drawings and schedule.
Summary for better project results
The main lesson is simple: confirm the system before confirming the order. Fire rated glass performance depends on the selected glass, compatible frame, correct hardware, tested seal method, site tolerance and installation sequence. A buyer who prepares these details early can reduce replacement risk, avoid wrong assumptions, improve approval speed and shorten project handover. For more options, continue with fire rated glass product range, fire resistant glass, fire rated glass, fire resistant glass door systems, fire resistant glass partition, fire rated glass certificates, product testing center, technical support and choose the product path that matches the required fire rating and installation scenario.
